Product Features
Sturdy Cabinet Construction: Utilizes high-strength materials to ensure stability during frequent transportation and setup.
High Market Utilization: Known for its durability and reliability, the 500H cabinet is a favorite among rental customers and enjoys a high rate of market usage.

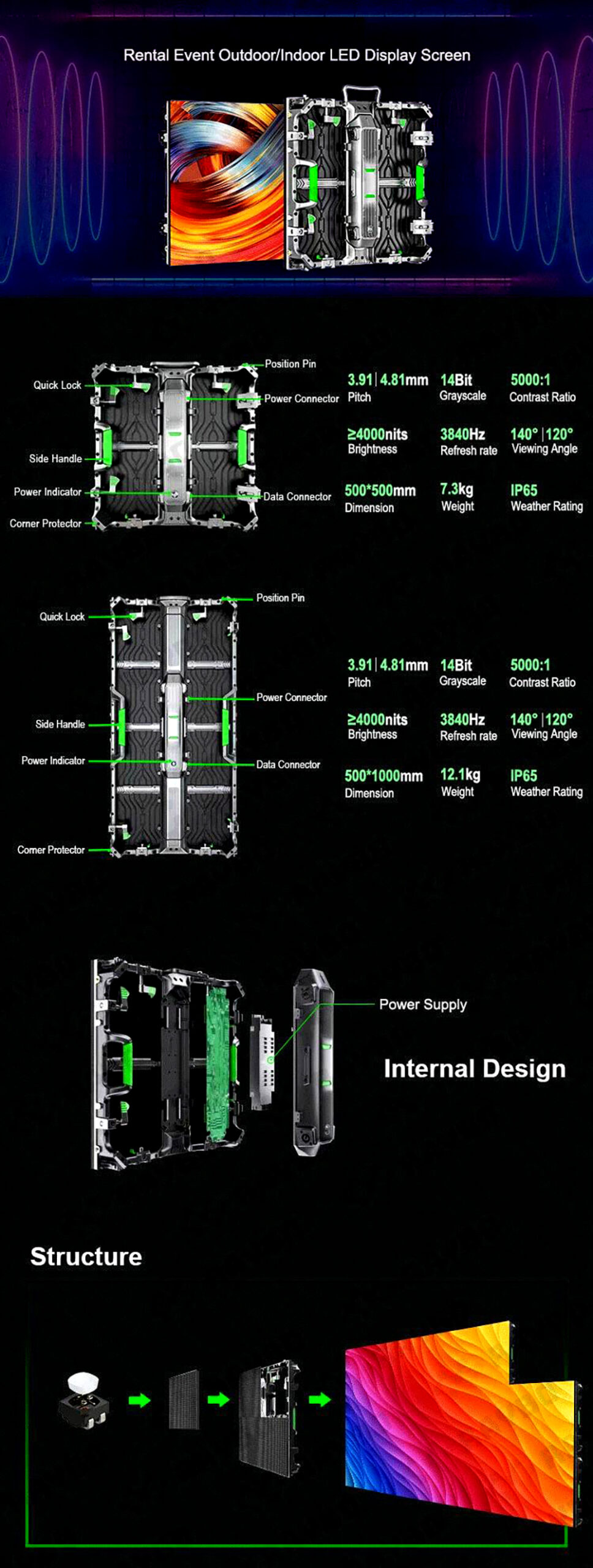

Easy Maintenance: Features convenient maintenance pathways for quick inspections and servicing of the display.
Rapid Deployment: Modular design with a magnetic snap-fastening system significantly reduces installation time.
Energy-Efficient: Equipped with energy-saving LED beads and intelligent brightness adjustment for reduced power consumption.
High Contrast Display: Advanced contrast technology ensures clear visibility under various lighting conditions.
| Items | Indoor P2.5 | Indoor P2.6 | Indoor P2.9 | Indoor P3.9 | Outdoor P3.9 | Outdoor P2.9 | Outdoor P2.6 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 2.604mm | 5.2mm | 3.91mm | 3.91mm | 2.976mm | 2.604mm |
| LED Configuration | SMD1515 | SMD1515 | SMD1921 | SMD1921 | SMD1921 | SMD1415 | SMD1415 |
| Module Size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module Resolution | 100*100dots | 96*96dots | 84*84dots | 64*64dots | 64*64dots | 84*84dots | 96*96dots |
| Cabinet Size (WXHXD) | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm |
| Cabinet Resolution(WXH) | 200*200dots | 192*192dots | 168*168dots | 128*128dots | 128*128dots | 168*168dots | 192*192dots |
| Transparency | 0% | 0% | 0% | 0% | 0% | 0% | 0% |
| Pixel Density | 160000 dots/㎡ | 147456 dots/㎡ | 36864 dots/㎡ | 65536 dots/㎡ | 65536 dots/㎡ | 112896 dots/㎡ | 147456 dots/㎡ |
| Materail | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG |
| Brightness | ≥800cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ |
| View Angle | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° |
| Best View Distance | ≥2m | ≥2m | ≥3m | ≥3m | ≥3m | ≥3m | ≥2m |
| Gray Scale | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit |
| Refresh Rate | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ |
| Frame changing frequency | 60fps | 60fps | 60fps | 60fps | 60fps | 60fps | 60fps |
| Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz |
| Power Consumption (Max/Avg) | 800/400W/㎡ | 800/400W/㎡ | 800/400W/㎡ | 800/400W/㎡ | 800/400W/㎡ | 800/400W/㎡ | 800/400W/㎡ |
| Screen weight | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ |
| MTBF | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs |
| Service life | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| IP Rate | IP43 | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 |
| Temperature | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ |
| Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Max. Hanging Height without Bracket | 10 meters | 10 meters | 10 meters | 10 meters | 10 meters | 10 meters | 10 meters |
Application Scenarios
Large-Scale Events: Provides an impactful visual experience at concerts, sports events, and festivals.
Conferences and Seminars: Displays key information and data during business and academic events.
Exhibitions and Trade Shows: Showcases product information to attract attendees at exhibitions and trade shows.
Advertising: Serves as an outdoor advertising medium to effectively engage target audiences.
TV and Online Broadcasting: Acts as a high-quality backdrop for live TV and online shows.
