Product Specificatian
| Indoor Transparent LED Display | Indoor Transparent LED Display | Indoor Transparent LED Display | Waterproof Outdoor Transparent LED Display | Waterproof Outdoor Transparent LED Display | Waterproof Outdoor Transparent LED Display | |
|---|---|---|---|---|---|---|
| Model | P2.8-5.6 | P2.976-6.25 | P3.91-7.81 | Waterproof P3.91-7.81 | Waterproof P7.81-15.625 | Waterproof P10.4-10.4 |
| LED Lamp | SMD2020/1921 | SMD2020/1921 | SMD2020/1921 | SMD1921 | SMD2727 | SMD3535 |
| Pixel Pitch | 2.8*5.6mm | 2.976*6.25mm | 3.91*7.81mm | 3.91-7.81mm | 7.81-15.625mm | 10.42-10.42mm |
| Cabinet Size | 1000*500mm or 1000mm*1000mm or Customized size | 1000*500mm or 1000mm*1000mm or Customized size | 1000*500mm or 1000mm*1000mm or Customized size | 1000*500mm or 1000mm*1000mm or Customized size | 1000*500mm or 1000mm*1000mm or Customized size | 1000*500mm or 1000mm*1000mm or Customized size |
| Cabinet Resolution | 356*89 dots/㎡ | 336*160 dots/㎡ | 256*128 dots/㎡ | 256*128dots | 128*64dots | 96*96dots |
| Refresh Rate | ＞1920HZ | ＞1920HZ | ＞1920HZ | ＞1920HZ | ＞1920HZ | ＞1920HZ |
| Pixel Density | 63368 dots/㎡ | 53760 dots/㎡ | 32768 dots/㎡ | 32768 dots/㎡ | 8192 dots/㎡ | 9216 dots/㎡ |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Transparency | ≥58％ | ≥70％ | ≥80％ | 45% | 45% | 45% |
| Brightness | 1000-4500cd/㎡ | 1000-3000cd/㎡ | 1000-4500cd/㎡ | ≥5000nit | ≥5000nit | ≥5000nit |
| Screen Weight | 7kg/㎡ | 7kg/㎡ | 7kg/㎡ | 10kg/㎡ | 15kg/㎡ | 15kg/㎡ |
| Power Consumption（Max./Avg.） | 800/280W/㎡ | 800/280W/㎡ | 800/280W/㎡ | 800/260W/㎡ | 800/260W/㎡ | 800/260W/㎡ |
| Input Votage | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz |
| View Angle | H120°，V120° | H120°，V120° | H120°，V120° | H120°，V120° | H120°，V120° | H120°，V120° |
| IP Rate | IP30 | IP30 | IP30 | IP65 | IP65 | IP65 |
| View Distance | ≥3m | ≥3m | ≥4m | ≥4m | ≥8m | ≥10m |
| Fire Resistance | Full VO grade flame retardant | Full VO grade flame retardant | Full VO grade flame retardant | Full VO grade flame retardant | Full VO grade flame retardant | Full VO grade flame retardant |
Product Advantages
High Transparency and Visibility
The transparent design allows for a maximum transparency rate of up to 50%, providing good light transmission and windproof performance. This makes it suitable for applications where the background needs to be visible through the screen.

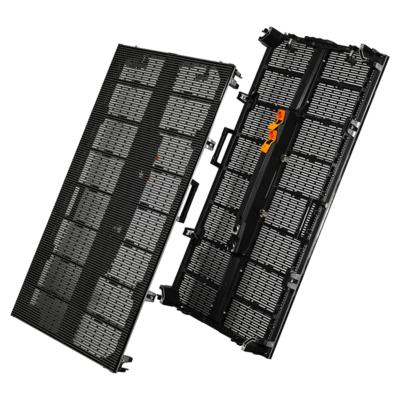

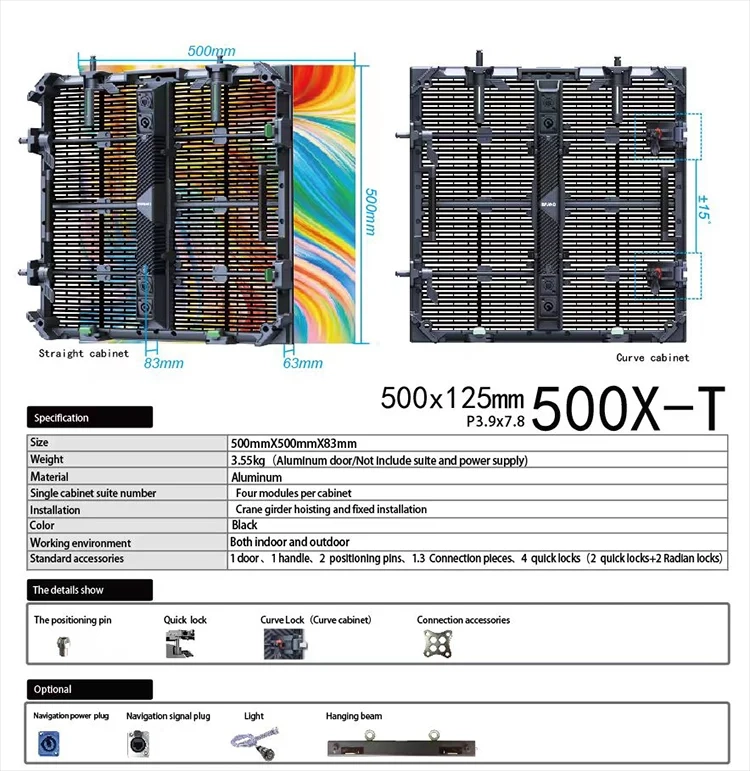

Ultra-Light and Ultra-Thin Design
The die-cast aluminum cabinet is ultra-light and ultra-thin, making it easy to handle and install. One person can carry it with one hand, significantly reducing the labor required for transportation and setup.
High Precision and Compatibility
The size of the cabinets is electromechanically processed to an accuracy of 0.1mm, ensuring high precision and seamless splicing. The new structural design meets the requirements for hoisting and stacking, as well as indoor and outdoor use.
Fast Assembly and Disassembly
The top, bottom, left, and right connections of the cabinet use a quick-locking mechanism, allowing a cabinet to be installed in just 10 seconds. This fast and convenient system saves loading and unloading time.
Reliable and Durable
The high strength and hardness of the cabinet, along with good heat dissipation, ensure reliability and durability. The cabinet is designed to withstand outdoor conditions, providing long-term performance.
Energy Efficiency
The screen has low power consumption, which saves operating costs and reduces labor costs. The average power consumption is designed to be efficient, making it a cost-effective solution for temporary and long-term use.

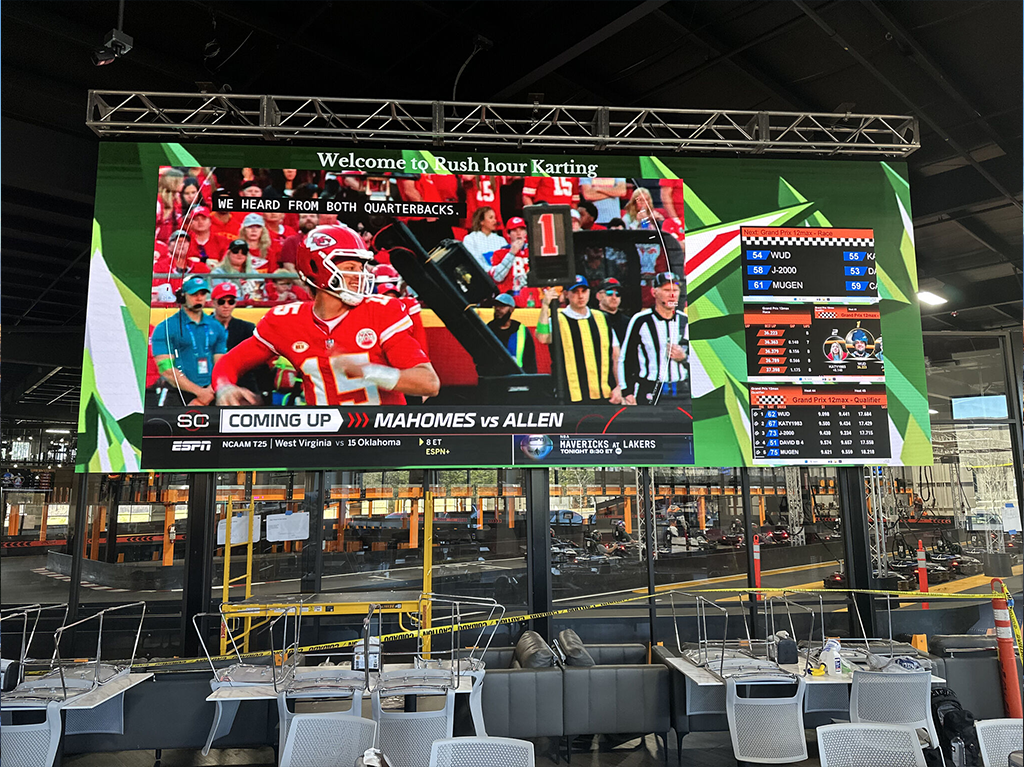

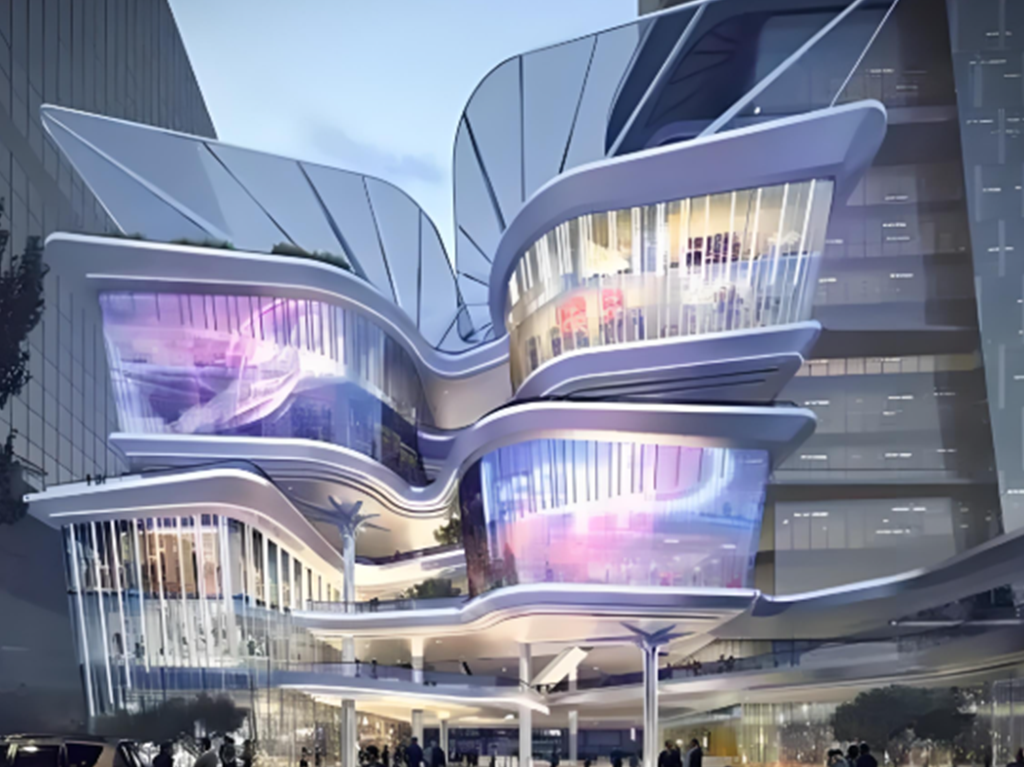

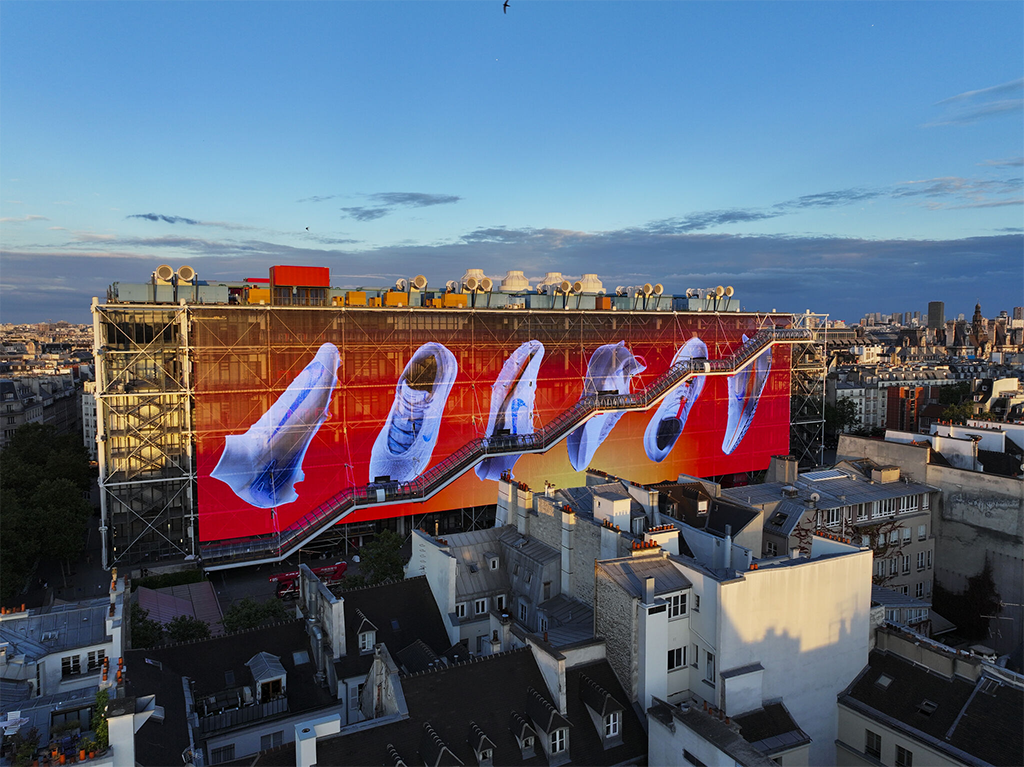

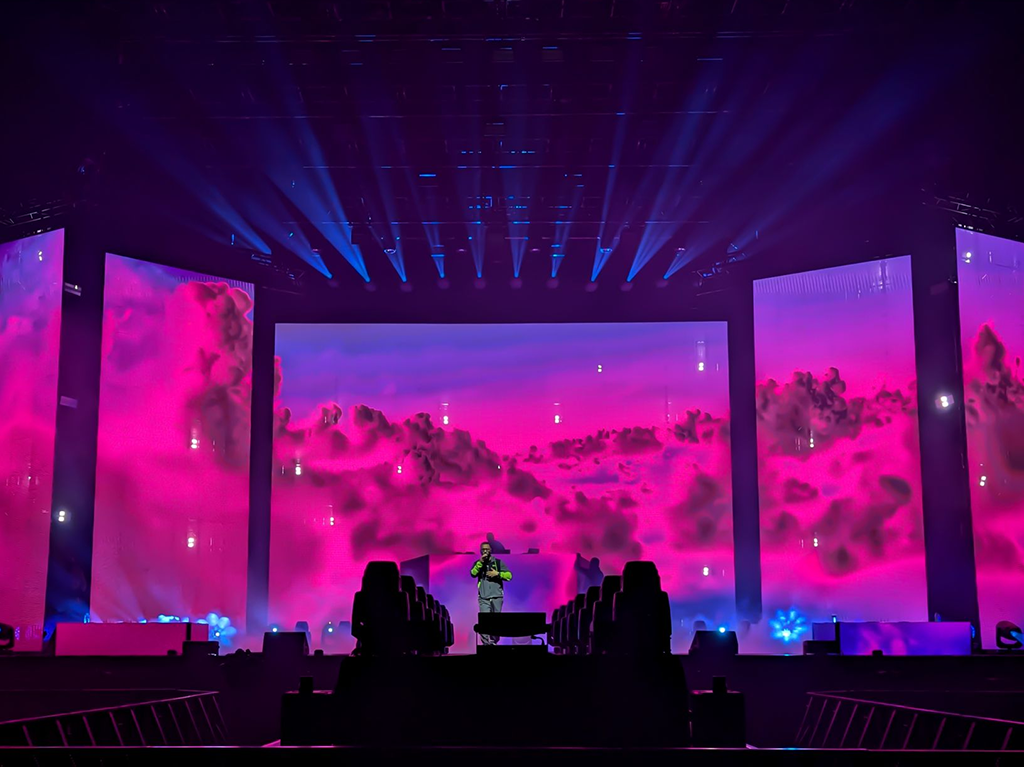

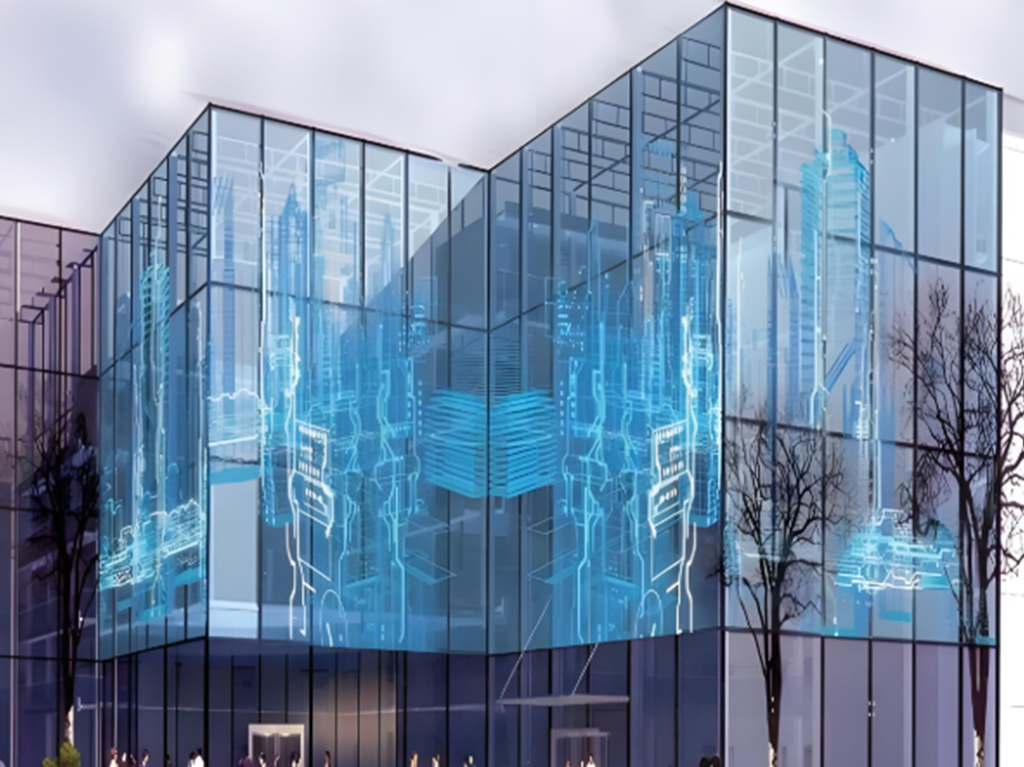

Product Application
