Product Specification
| Item | Indoor Flexible LED Display | Indoor Flexible LED Display | Indoor Flexible LED Display | Indoor Flexible LED Display | Indoor Flexible LED Display | Indoor Flexible LED Display | Indoor Flexible LED Display |
|---|---|---|---|---|---|---|---|
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor | indoor | indoor |
| Model | P1.5 | P1.8 | P2 | P2.5 | P3 | P4 | P5 |
| Pixel Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm | 5mm |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Type | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm |
| Module Resolution | 208×104 Pixel | 172×86 Pixel | 160×80 Pixel | 128×64 Pixel | 104×52 Pixel | 80×40 Pixel | 64×32 Pixel |
| Pixel Density | 422,753 | 289,050 | 250,000 | 160,000 | 105,688 | 62,500 | 40,000 |
| Scan | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan | 1/20 Scan | 1/16 Scan |
| Brightness | 700-900cd | 700-900cd | 700-900cd | 700-900cd | 700-900cd | 700-900cd | 700-900cd |
| View Angle | 140° (H)/140°(V) | 140° (H)/140°(V) | 140° (H)/140°(V) | 140° (H)/140°(V) | 140° (H)/140°(V) | 140° (H)/140°(V) | 140° (H)/140°(V) |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Grey Level | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit | 16 Bit |
| MTBF | ≥ 10,000 hs | ≥ 10,000 hs | ≥ 10,000 hs | ≥ 10,000 hs | ≥ 10,000 hs | ≥ 10,000 hs | ≥ 10,000 hs |
| Operating Temperature | -30 ℃ ~ +70 ℃ | -30 ℃ ~ +70 ℃ | -30 ℃ ~ +70 ℃ | -30 ℃ ~ +70 ℃ | -30 ℃ ~ +70 ℃ | -30 ℃ ~ +70 ℃ | -30 ℃ ~ +70 ℃ |
| Operationg humidity | 10%～95% | 10%～95% | 10%～95% | 10%～95% | 10%～95% | 10%～95% | 10%～95% |
P2 Pixel PitchOffers high resolution for sharp and vivid visuals, ideal for close viewing distances (around 2 meters and above).

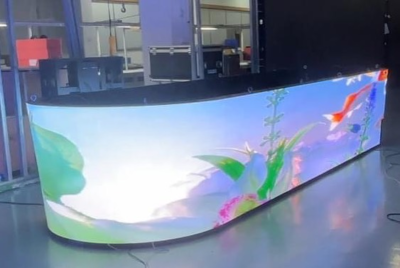

Flexible and CurvedConforms to curved surfaces and allows for circular configurations, creating a unique and eye-catching display.
Indoor UseDesigned for optimal performance in controlled indoor environments.

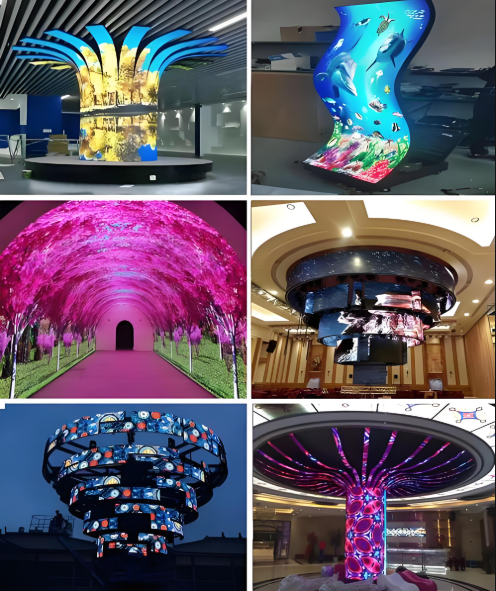

Application Scenarios
