Product Specification
| Items | Indoor P1.8 | Indoor P2 | Indoor P2.5 |
|---|---|---|---|
| Pixel Pitch | 1.86mm | 2.0mm | 2.5mm |
| LED Configuration | SMD1515 | SMD1515 | SMD2020 |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution | 172*86dots | 160*80dots | 128*64dots |
| Cabinet Size (WXH) | 640*1920mm or Customized Size | 640*1920mm or Customized Size | 640*1920mm or Customized Size |
| Cabinet Resolution(WXH) | 344*1032dots | 320*960dots | 256*768dots |
| Pixel Density | 250,000 dots/㎡ | 250,000 dots/㎡ | 160,000 dots/㎡ |
| Materail | Iron Cabinet | Iron Cabinet | Iron Cabinet |
| Screen Weight | 40KG | 40KG | 40KG |
| Brightness | ≥800cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ |
| View Angle | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° |
| Best View Distance | ≥1.5m | ≥1.5m | ≥2.5m |
| Gray Scale | 16bit | 16bit | 16bit |
| Refresh Rate | ＞3840HZ | ＞3840HZ | ＞3840HZ |
| Frame changing frequency | 60fps | 60fps | 60fps |
| Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz |
| Power Consumption (Max/Avg) | 900/400W | 900/400W | 900/400W |
| Maintenance Service | Front Maintenance | Front Maintenance | Front Maintenance |

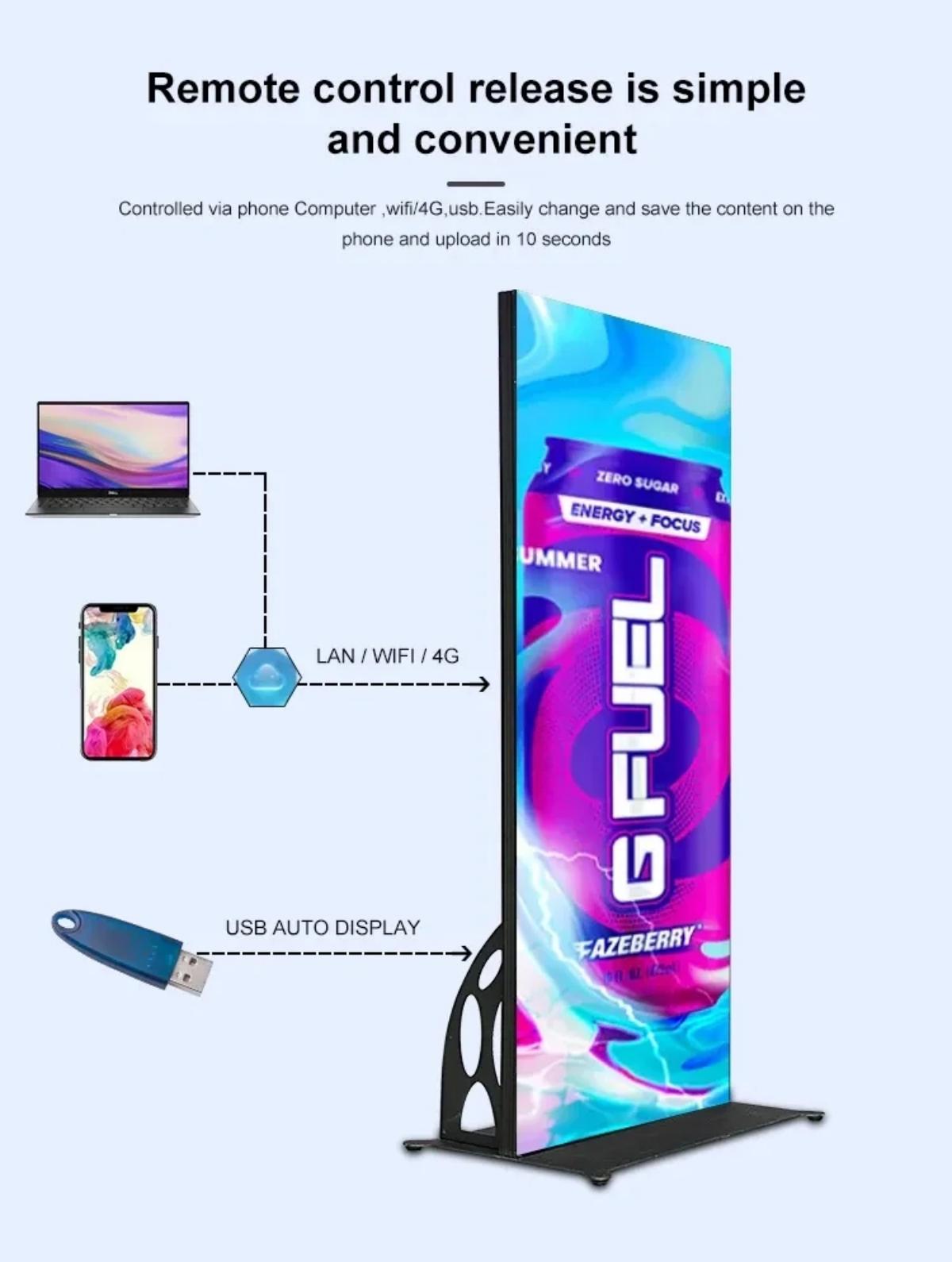

| Control Way | 3G/4G/WIFI/USB/LAN | 3G/4G/WIFI/USB/LAN | 3G/4G/WIFI/USB/LAN |
| Service life | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| IP Rate | IP43 | IP43 | IP43 |
| Temperature | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ |
| Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Key Features
High-Definition Display: The 2.5mm pixel pitch delivers high-definition visuals suitable for close observation.
Wide Color Gamut: Employs a wide color gamut for a more diverse and lifelike color representation.
Energy-Efficient Design: An optimized power management system reduces operational costs by minimizing energy consumption.
High Refresh Rate: A high refresh rate of 3840Hz ensures smooth motion without ghosting, ideal for high-definition video content.
Adaptive Brightness: Automatically adjusts brightness based on ambient light, enhancing visual comfort and conserving energy.

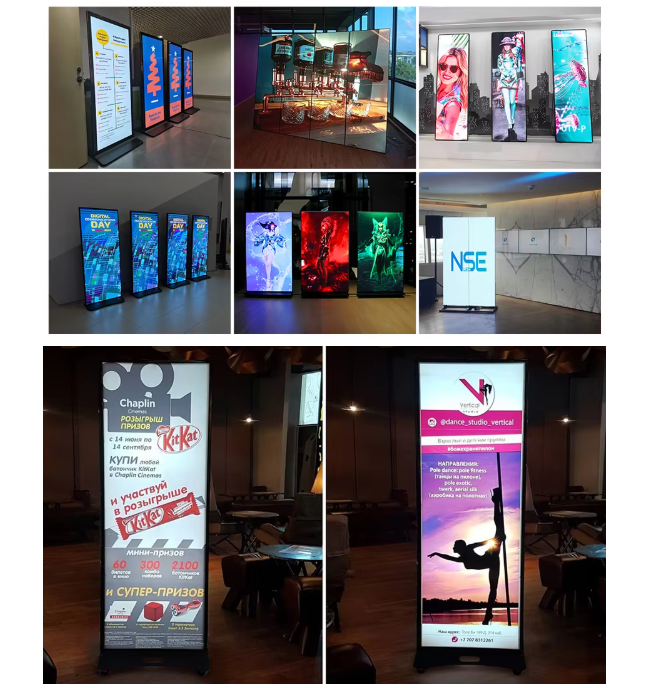

Application Scenarios
Commercial Advertising: Shopping centers, commercial streets, flagship stores, etc.
Public Information Display: Airports, train stations, subway stations, and other transportation hubs.
Event Presentation: Exhibitions, conference centers, sports events, etc.
Surveillance and Command Centers: Security monitoring, traffic management centers, etc.
Stage Backdrops: Concerts, theatrical performances, TV show recordings, etc.
