LED Screen Data Sheet
| Items | Indoor P2.5 | Indoor P2.6 | Indoor P2.9 | Indoor P3.9 | Outdoor P3.9 | Outdoor P2.9 | Outdoor P2.6 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 2.604mm | 5.2mm | 3.91mm | 3.91mm | 2.976mm | 2.604mm |
| LED Configuration | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1921 | SMD1415 | SMD1415 |

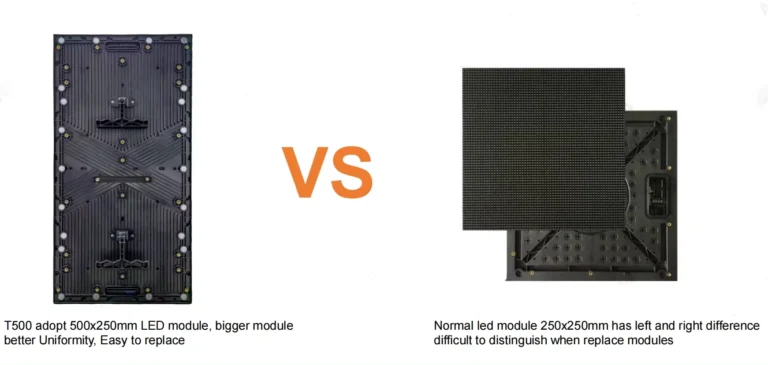

| Module Size | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm |
| Module Resolution | 100*200dots | 96*192dots | 84*168dots | 64*128dots | 64*128dots | 84*168dots | 96*192dots |
| Cabinet Size (WXHXD) | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm |
| Cabinet Resolution(WXH) | 200*200dots | 192*192dots | 168*168dots | 128*128dots | 128*128dots | 168*168dots | 192*192dots |
| Pixel Density | 160000 dots/㎡ | 147456 dots/㎡ | 36864 dots/㎡ | 65536 dots/㎡ | 65536 dots/㎡ | 112896 dots/㎡ | 147456 dots/㎡ |
| Materail | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG |
| Brightness | ≥800cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ | ≥3500cd/㎡ |
| View Angle | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° |
| Best View Distance | ≥2m | ≥2m | ≥3m | ≥3m | ≥3m | ≥3m | ≥2m |
| Gray Scale | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit |
| Refresh Rate | 3840HZ-7680HZ | 3840HZ-7680HZ | 3840HZ-7680HZ | 3840HZ-7680HZ | 3840HZ-7680HZ | 3840HZ-7680HZ | 3840HZ-7680HZ |
| Frame changing frequency | 60fps | 60fps | 60fps | 60fps | 60fps | 60fps | 60fps |
| Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz |
| Power Consumption (Max/Avg) | 600/300W/㎡ | 600/300W/㎡ | 600/300W/㎡ | 600/300W/㎡ | 800/400W/㎡ | 800/400W/㎡ | 800/400W/㎡ |
| Screen weight | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ | 28kg/㎡ |
| MTBF | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs |
| Service life | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| IP Rate | IP43 | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 |
| Temperature | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ |
| Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Max. Hanging Height without Bracket | 10 meters | 10 meters | 10 meters | 10 meters | 10 meters | 10 meters | 10 meters |
Product Description
LED Video Wall Giant P2.5 P2.6 P2.976 P3.91 P4.81 T500 Rental LED Display for Indoor & Outdoor EventsKey Features

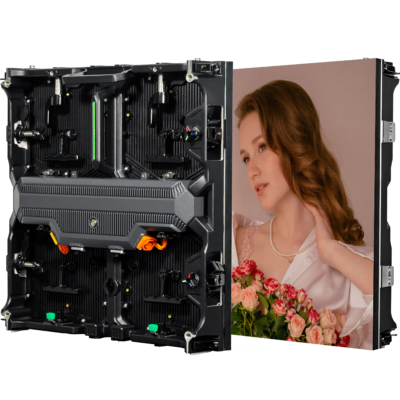

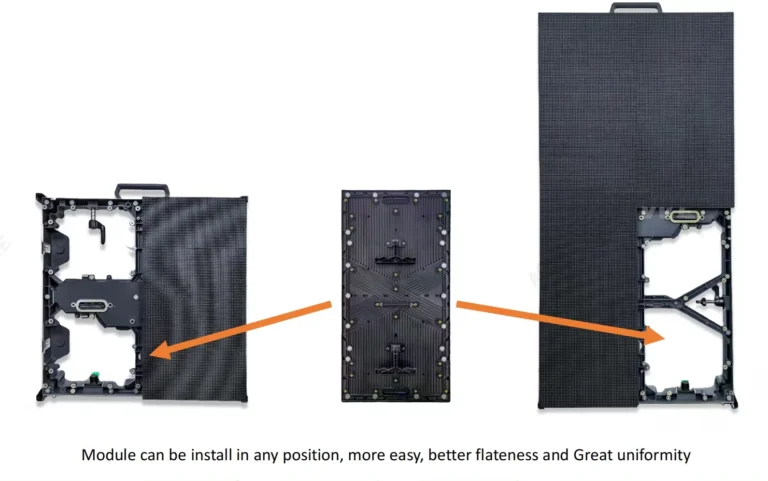

One-Handed Operation: A unique design that allows for quick and easy installation and removal with just one hand.Labor Cost Reduction: The streamlined setup process significantly minimizes the need for manual labor and associated costs.High Integration: Consolidates power and signal interfaces, simplifying the cabling and troubleshooting process.Modular Design: Facilitates quick on-site maintenance with easily replaceable modules.Durable Construction: Sturdy build to withstand frequent transportation and diverse usage environments.Easy Maintenance: Front-maintenance design for convenient and swift troubleshooting and module replacement.
Application Scenarios

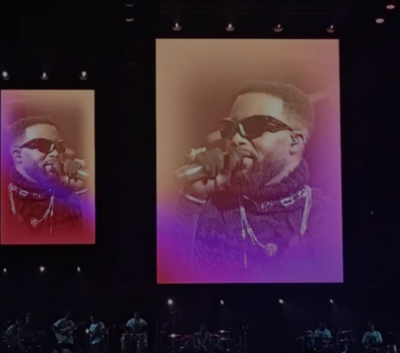

Stage Rentals: Ideal for concerts, music festivals, and various performances.
Conferences and Events: Provides visual support for product launches, corporate events, and more.

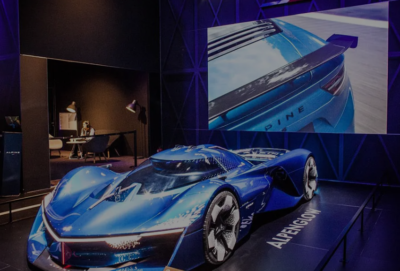

Exhibitions and Trade Shows: Showcases products and information at exhibitions and trade shows.
Sports Events: Displays scoreboards and replays during sports events.
Advertising: Serves as an outdoor billboard to attract the attention of pedestrians and vehicles.
FAQ
Q: Is the 500T Rental LED Display Cabinet easy to install?
A: Yes, the 500T cabinet is designed for one-handed operation, making the installation process fast and straightforward.
Q: Is this display cabinet suitable for frequent rental use?
A: Highly suitable. The modular and front-maintenance design of the 500T cabinet make it ideal for frequent rental use and quick deployment.
Q: Can the brightness of the display cabinet be adjusted?
A: Yes, the brightness of the 500T display cabinet can be adjusted to suit different environments and requirements.
Q: What are the maintenance costs like for the display cabinet?
A: The maintenance costs are relatively low due to the modular design and front-maintenance features of the 500T display cabinet.
Q: Does the 500T display cabinet support customization services?
A: Yes, we offer customization services, including pixel pitch and size, to meet the diverse needs of our clients.
