Carbon fiber Rental led display parameter
| Items | Outdoor P6.9 | Outdoor P5.95 | Outdoor P3.9 | Outdoor P2.9 | Indoor P3.9 | Indoor P2.9 | Indoor P2.6 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 6.94mm | 5.95mm | 3.91mm | 2.976mm | 3.91mm | 2.976mm | 2.604mm |
| LED Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1415 | SMD2020 | SMD2020 | SMD1515 |
| Module Size | 250*500mm | 250*500mm | 250*500mm | 250*500mm | 250*500mm | 250*500mm | 250*500mm |
| Module Resolution | 36*72dots | 42*84dots | 64*128dots | 84*168dots | 64*128dots | 84*168dots | 96*192dots |
| Cabinet Size (WXHXD) | 500*1000*20mm | 500*1000*20mm | 500*1000*20mm | 500*1000*20mm | 500*1000*20mm | 500*1000*20mm | 500*1000*20mm |
| Cabinet Resolution(WXH) | 72*144dots | 84*168dots | 128*256dots | 168*336dots | 128*256dots | 168*336dots | 192*192dots |
| Transparency | ≥55％ | ≥55％ | 0% | 0% | 0% | 0% | 0% |
| Pixel Density | 20736 dots/㎡ | 28246 dots/㎡ | 65536 dots/㎡ | 112896 dots/㎡ | 65536 dots/㎡ | 112896 dots/㎡ | 147456 dots/㎡ |
| Materail | Carbon Fiber | Carbon Fiber | Carbon Fiber | Carbon Fiber | Carbon Fiber | Carbon Fiber | Carbon Fiber |
| Empty Cabinet Weight | 3KG | 3KG | 3KG | 3KG | 3KG | 3KG | 3KG |
| Brightness | ≥5000cd/㎡ | ≥5000cd/㎡ | ≥5000cd/㎡ | ≥5000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ |
| View Angle | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° | H 140°，W 140° |
| Best View Distance | ≥7m | ≥5m | ≥3m | ≥3m | ≥3m | ≥3m | ≥3m |
| Gray Scale | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit |
| Refresh Rate | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ | ＞3840HZ |
| Frame changing frequency | 60fps | 60fps | 60fps | 60fps | 60fps | 60fps | 60fps |
| Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz |
| Power Consumption (Max/Avg) | 800/280W/㎡ | 800/280W/㎡ | 800/280W/㎡ | 800/280W/㎡ | 800/280W/㎡ | 800/280W/㎡ | 800/280W/㎡ |
| Screen weight | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ |
| MTBF | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs | >10,000 hrs |
| Service life | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP43 | IP43 | IP43 |
| Temperature | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ |
| Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Max. Hanging Height | 30 meters | 30 meters | 30 meters | 30 meters | 30 meters | 30 meters | 30 meters |
High-Impact Outdoor Visuals: Rent a Carbon Fiber LED Display
Make a lasting impression with a stunning outdoor LED display crafted from lightweight, yet durable carbon fiber. Perfect for temporary events and rentals, this high-resolution display delivers exceptional image quality even in bright outdoor conditions.

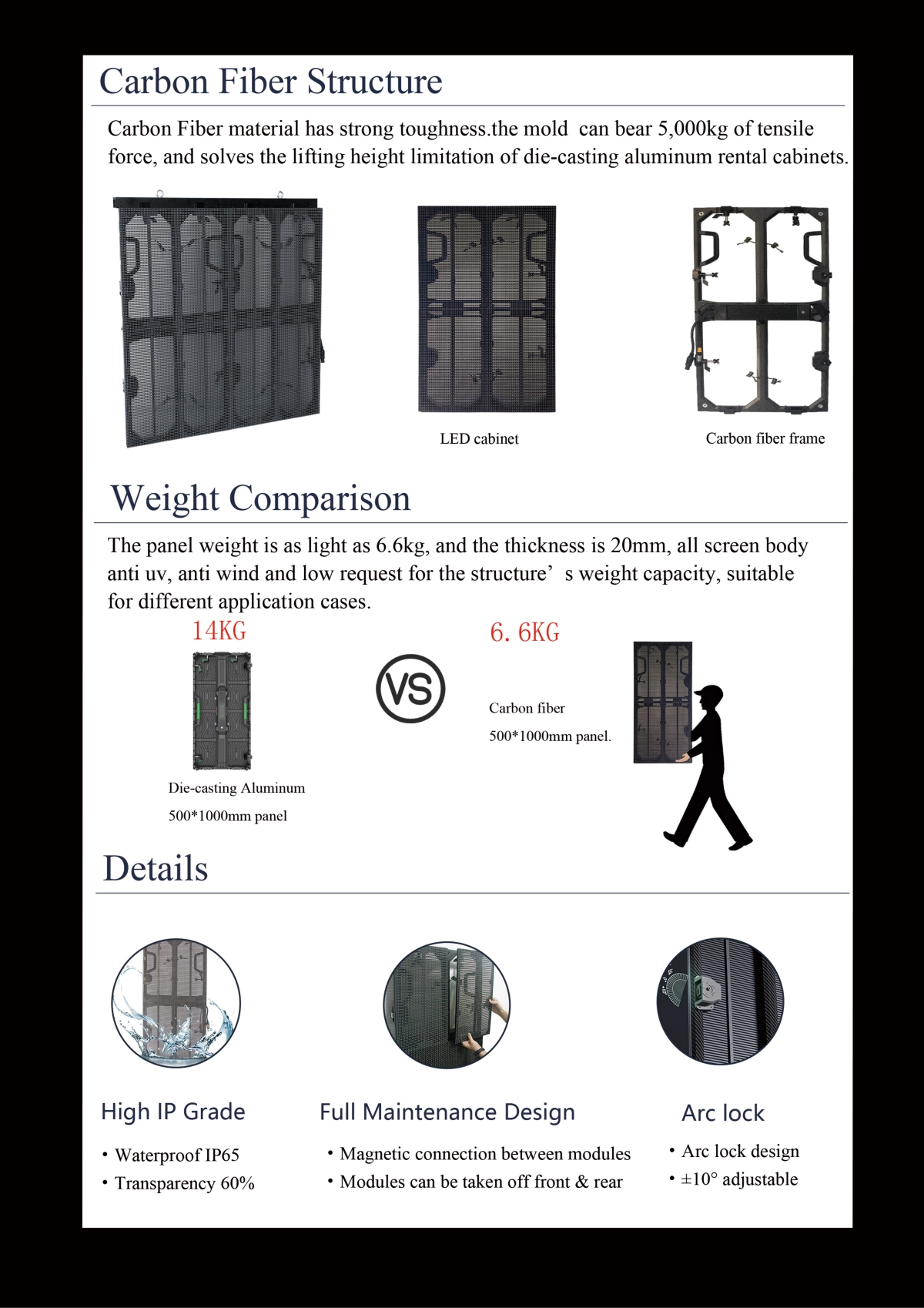

Lightweight Carbon Fiber Cabinet:
Strong and easy to transport, simplifying setup and reducing transportation costs.
Outdoor Suitability:
Weatherproof design protects against rain, dust, and UV rays for reliable performance.
Vivid Picture Quality:
High brightness LEDs and a fine pixel pitch ensure crisp visuals, even under sunlight.

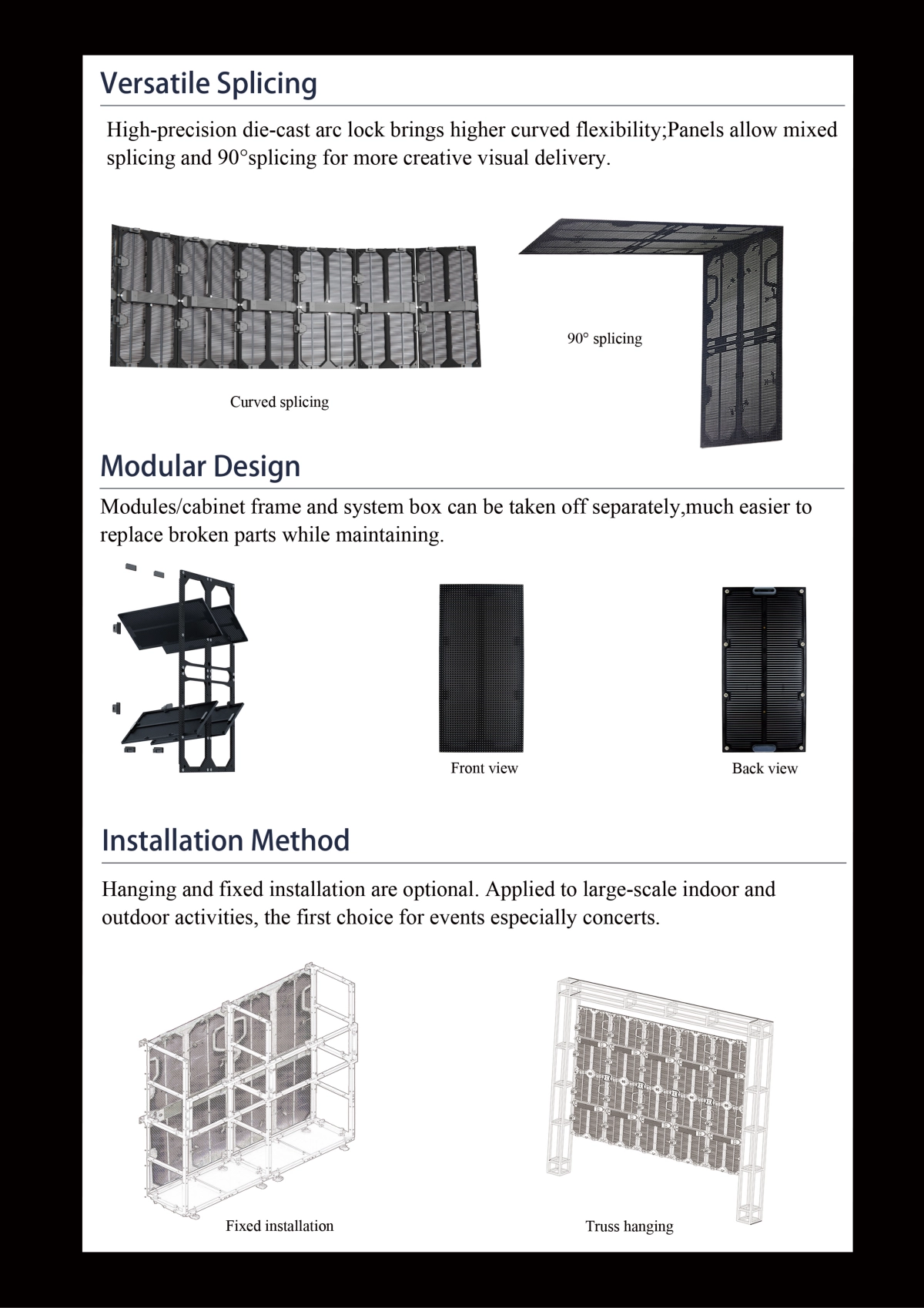

Modular Design:
Seamlessly assemble various sized displays to fit your specific needs.
Cost-Effective Rental Option:
Ideal for temporary events and activations without the upfront investment of a permanent display.

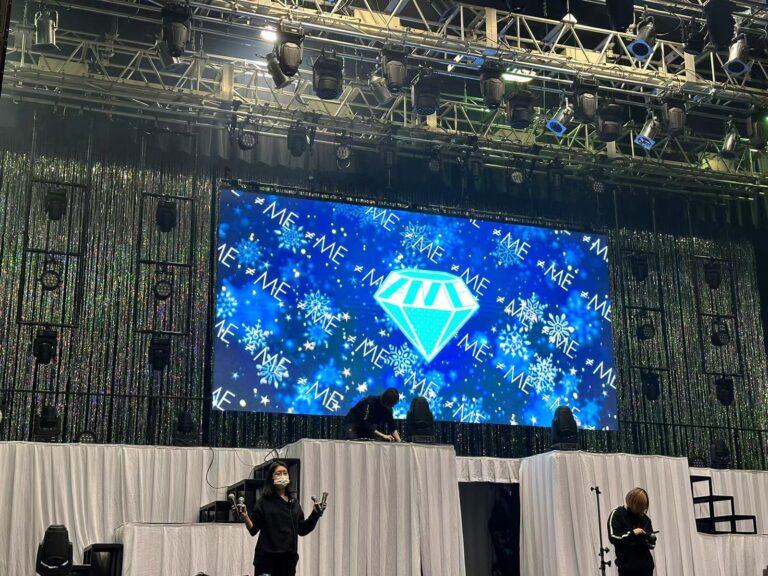

Carbon Fiber Rental LED Display Projects Application
Event producers and planners
Marketing and advertising agencies
Retail businesses for outdoor promotions
Concert and festival organizers
Sporting event productions
