Parameter Specification
| Model | P2.5 | P3 | P3 | P4 | P4 | P5 | P6 | P6.67 | P8 | P8 | P10 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 3mm | 3.076mm | 4mm | 4mm | 5mm | 6mm | 6.67mm | 8mm | 8mm | 10mm |
| Scan mode | 1/16 Scan | 1/16 Scan | 1/13 Scan | 1/8 Scan | 1/10 Scan | 1/8 Scan | 1/8 Scan | 1/6 Scan | 1/4 Scan | 1/5 Scan | 1/4 Scan；1/2 Scan |
| Led lamp | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Module size | 320*160mm | 192*192mm | 320*160mm | 256*128mm | 320*160mm | 320*160mm | 192*192mm | 320*160mm | 256*128mm | 320*160mm | 320*160mm |
| Module Resolution | 128*64dots | 64*64dots | 104*52dots | 64*32dots | 80*40dots | 64*32dots | 32*32dots | 48*24dots | 32*16dots | 40*20dots | 32*16dots |
| Pixel density | 160,000dots/㎡ | 111,111dots/㎡ | 105,688dots/㎡ | 62,500dots/㎡ | 62,500dots/㎡ | 40,000dots/㎡ | 27,777dots/㎡ | 22,477dots/㎡ | 15,625dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Brightness | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ | >5000cd/㎡ |
| Cabinet Size | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. | Customized; 960x960mm; 1024x1024mm; 960x640mm; 1024x512mm; 960x768mm,etc. |
| Refresh Rate | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ | 1920Hz-3840HZ |
| Power Consumption | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ | AVG：400W/㎡，MAX：800W/㎡ |
| Screen Weight | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ | <35kg/㎡ |
| Protection grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Lifespan | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Output Voltage | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply |
| Input Voltage | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system |
| Working Condition | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH |
| Viewing distance | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m | 2-250m |
| Viewing angle | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° |
Product Description
1. Customized Cabinet Size: 960×960mm ; 1024x1024mm; 960x640mm; 1024x512mm,etc.
2. SMD LED; High brightness: >5000nits, and brightness adjustable,High intensity.
3. Standard processing technology to ensure each row and each column lamps at the same horizontal line, and ensure light consistency and clear, stability pictures.
4. Large viewing angle, up to 120° horizontally and 120° vertically. Image no distortion, no color cast in any angle within this range.

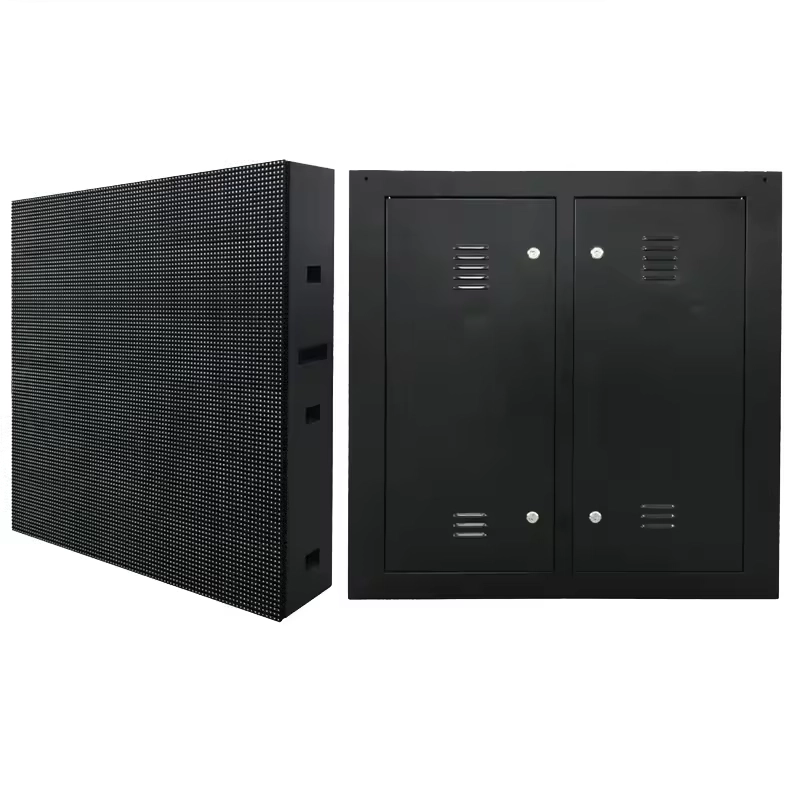

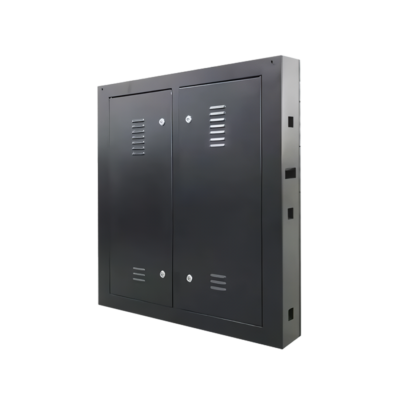

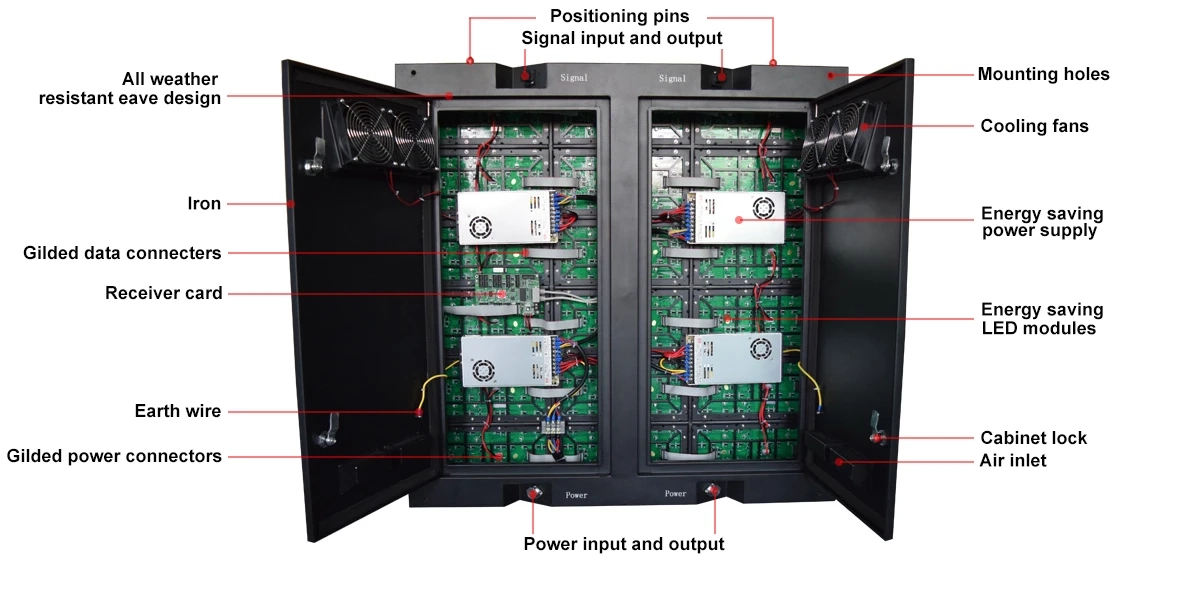

5. Back Rear Cabinet design , IP65+ high-performance waterproof and dust resistance.
Application
