Technical Specifications
| Item | Specification |
|---|---|
| Pixel Pitch | 7.8-7.8 mm |
| Cabinet Size | 500 × 500 mm |
| Cabinet Weight | 6.4 kg per panel |
| Pixel Density | 16,384 dots/m² |
| Brightness | ≥6,000 cd/m² |
| Refresh Rate | 3,840–7,680 Hz |
| LED Type | SMD1415 |
| Protection Rating | IP65 |
| Maintenance | Front/Rear |
| Power Consumption | Max 800W/㎡ |

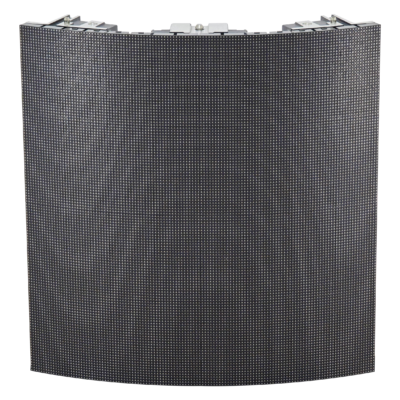

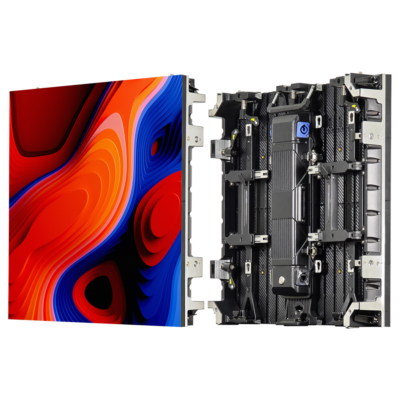

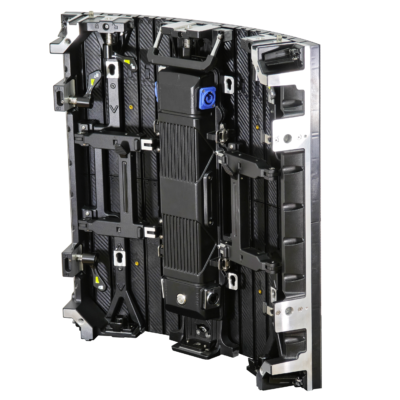

The P7.8 Outdoor Flexible Rental Transparent LED Display is yeshine LED’s triple-threat solution—combining high brightness, high flexibility, and high protection—designed specifically for large-scale outdoor concerts, music festivals, sporting events, and creative stage designs. Utilizing a standard 500×500mm die-cast aluminum cabinet weighing only 6.4 kg per unit, it supports tool-free manual installation, significantly enhancing rental efficiency.
|Key Features |
Key Features of P7.8 Outdoor Flexible Rental Transparent LED DisplayHigh Definition & High Brightness, Clearly Visible Outdoors
Pixel density: 16,384 dots/m². Peak brightness up to 6,000 cd/m² ensures sharp, vivid visuals even under direct sunlight.Flexible & Bendable, Endless Creative Shapes

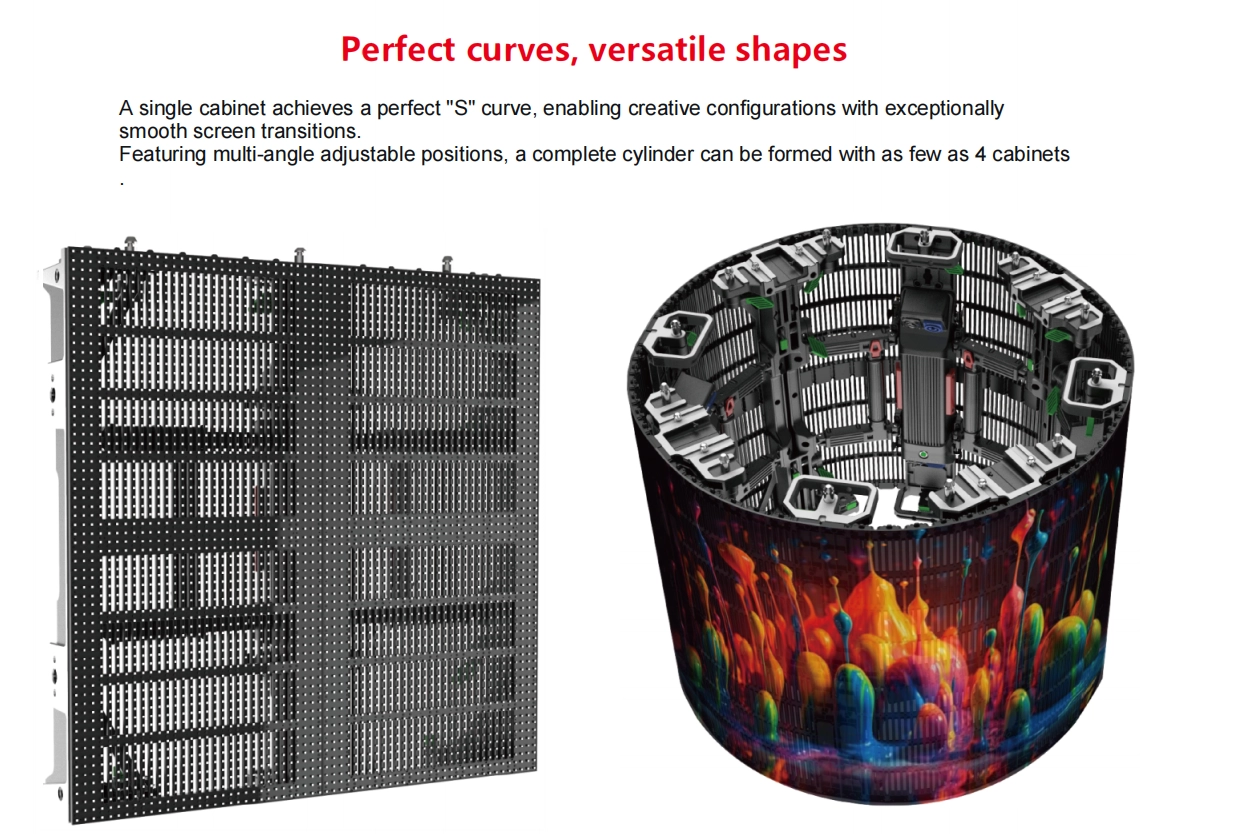

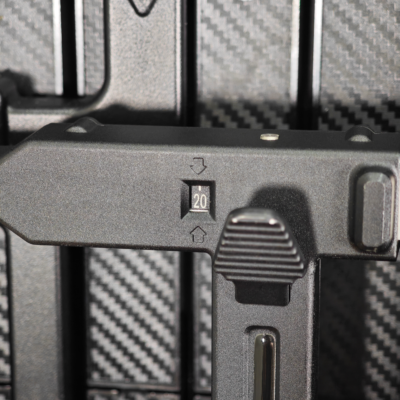

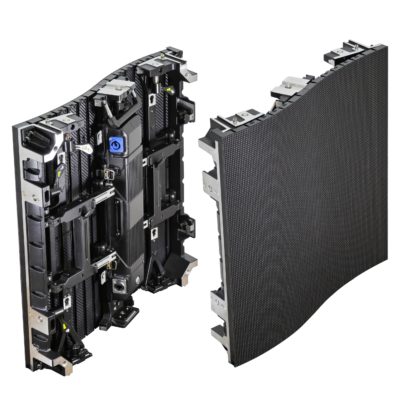

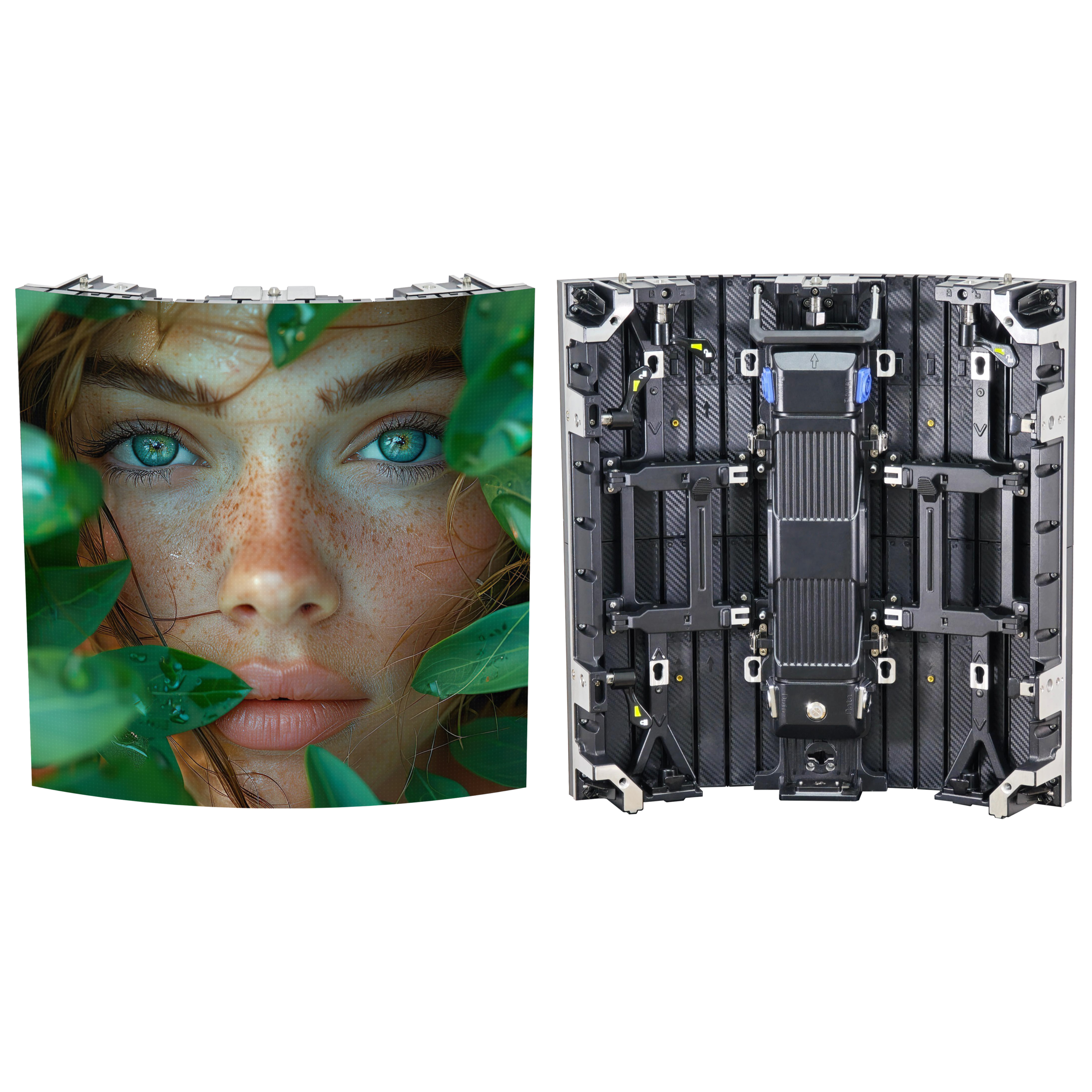

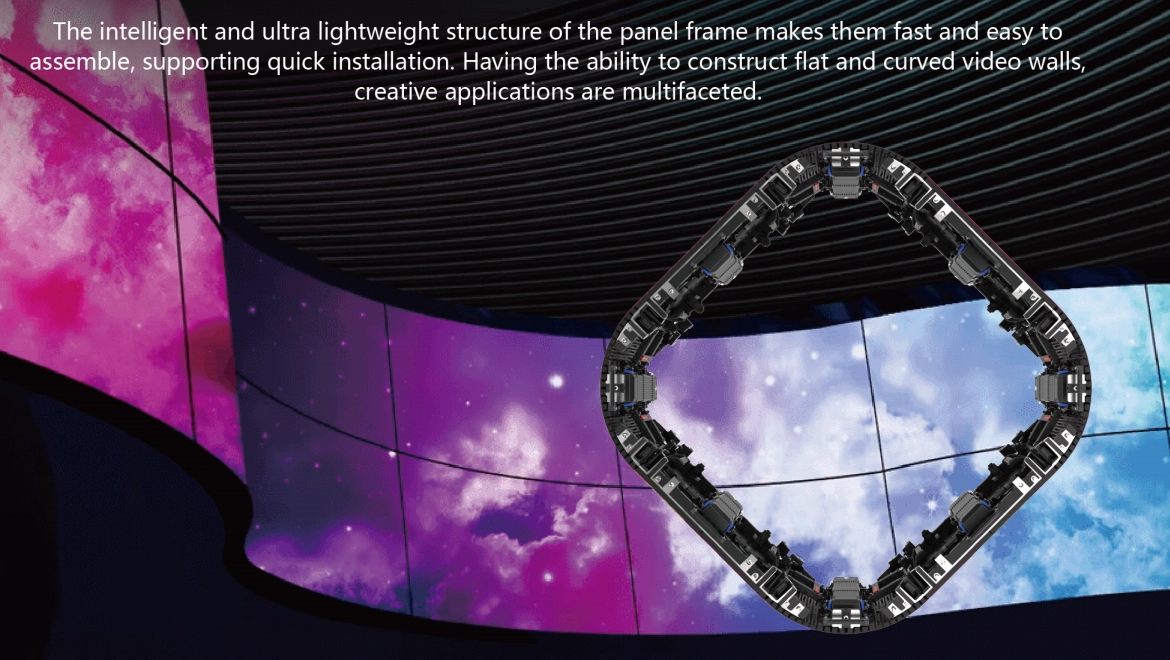

A single cabinet can form "S" curves and 360° cylinders. A complete circle can be assembled with a minimum of 4 cabinets, enabling arcs, waves, stair-steps, and various other creative structures.Lightweight & Fast Installation, Rental Efficiency Boosted by 50%

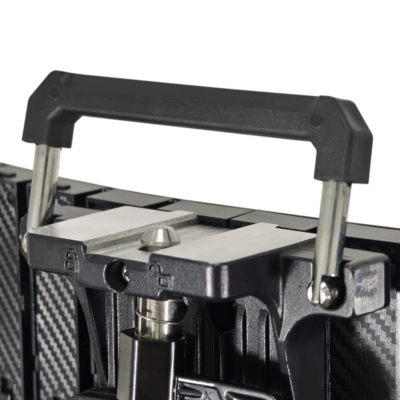

Lightweight die-cast aluminum cabinet design allows for quick manual setup and teardown, saving significant time and labor for rental operations.Dual Waterproof Protection, Stable Outdoor Performance

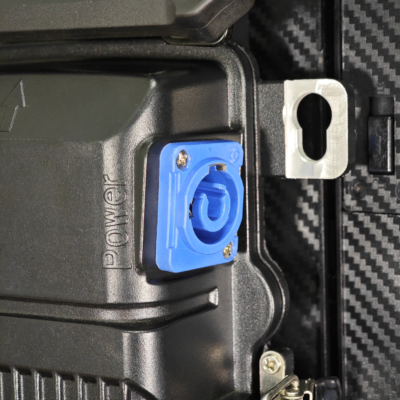

Features fully potted modules and waterproof connectors for power boxes, achieving an IP65 protection rating for reliable operation in heavy rain.High Refresh Rate & Grayscale, Flicker-Free for Recording
With a refresh rate of 3,840–7,680 Hz and broadcast-grade PWM driving technology, it eliminates flicker and scan lines during smartphone or professional camera recording.Modular Maintenance, Zero Downtime During Events
Magnetic front maintenance design allows for tool-free access. The latch-style power box can be replaced in just 5 seconds, ensuring uninterrupted performances.
Outdoor Applications
Typical ApplicationsP7.8 Outdoor Flexible Rental Transparent LED Display is widely used in:Main stages for outdoor concerts and music festivalsLive broadcast screens for sporting eventsCommercial events and brand launch conferencesCreative irregular stages and curved background wallsCity landmarks and temporary exhibition displays
