Product Specification
| Item | P4.44 | P5.7 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|
| Pixel Composition(SMD) | 1921 | 2727 | 2727 | 2727 | 2727 |
| Pixel Pitch(mm) | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |

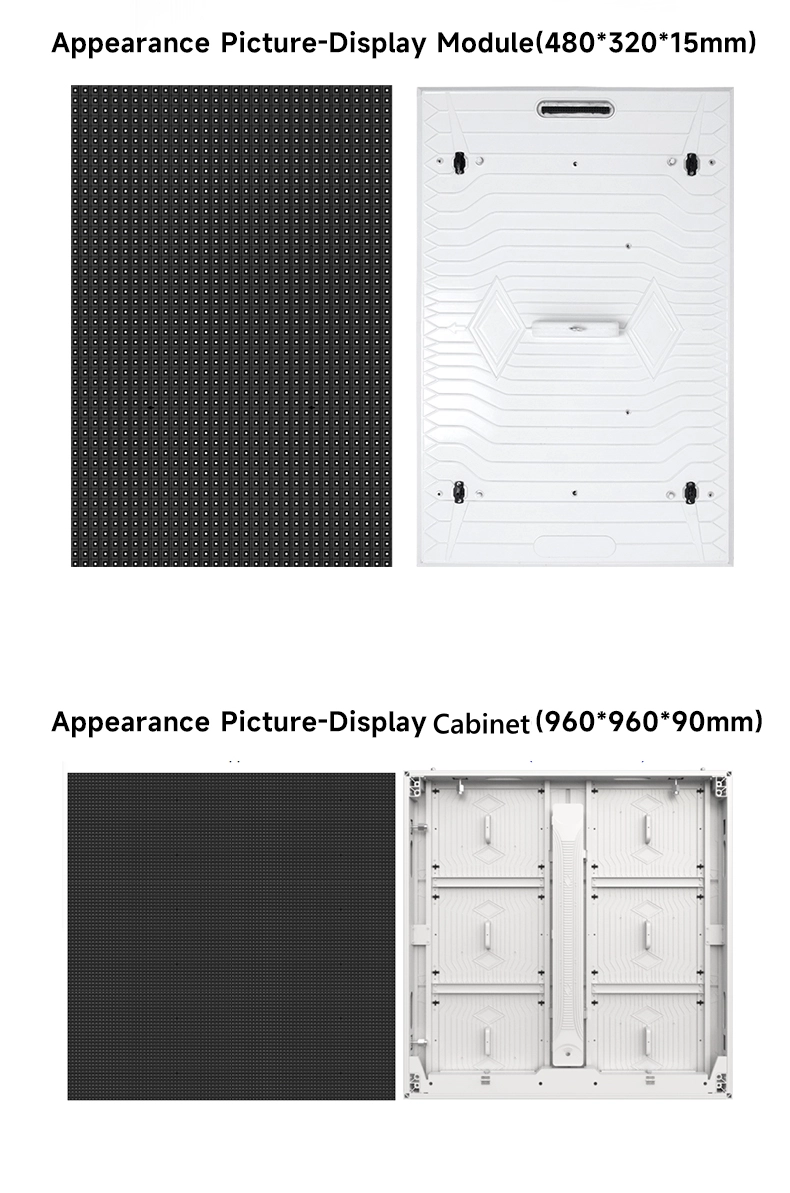

| Module Size(mm) | 480×320×16 | 480×320×16 | 480×320×16 | 480×320×16 | 480×320×16 |
| Module Weight(kg) | 2 | 2 | 2 | 2 | 2 |
| Module Qty/Cabinet(W×H) | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
| Cabinet Resolution(W×H) | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |

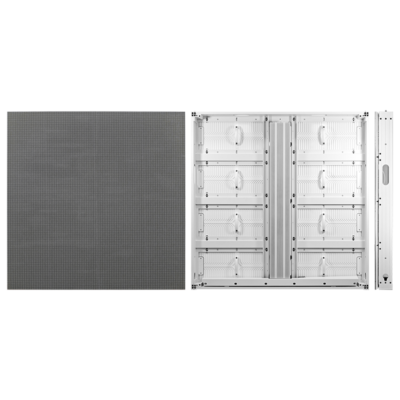

| Cabinet Size(mm) | 960×960×87 | 960×960×87 | 960×960×87 | 960×960×87 | 960×960×87 |
| Cabinet Area(㎡) | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 |
| Cabinet Weight(kg/cabinet) | 25 | 25 | 25 | 25 | 25 |
| Cabinet Material | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium |
| Cabinet Density（dot/m²） | 50625 | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| White Balance Brightness(nits) | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥6000 |
| Color Processor(bit) | 16 | 16 | 16 | 16 | 16 |
| Color Temperature(K) | 6500-9000 | 6500-9000 | 6500-9000 | 6500-9000 | 6500-9000 |
| Visual Angle(H/V) | 140°/ 120° | 140°/ 120° | 140°/ 120° | 140°/ 120° | 140°/ 120° |
| Luminous point centre deviation | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% |
| Luminance uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Chromaticity uniformity | Within ±0.003Cx, Cy | Within ±0.003Cx, Cy | Within ±0.003Cx, Cy | Within ±0.003Cx, Cy | Within ±0.003Cx, Cy |
| Contrast Ratio | ≥15000:1 | ≥15000:1 | ≥15000:1 | ≥15000:1 | ≥15000:1 |
| The Max Power Consumption(W/㎡) | 700 | 700 | 700 | 700 | 800 |
| Average Power Consumption(W/㎡) | 235 | 235 | 235 | 235 | 268 |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V | AC100~240V | AC100~240V |
| Frequency(Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| IC Driving(s) | 1/9 | 1/7 | 1/6 | 1/5 | 1/2 |
| Refreshing Ratio(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Maintenance Method | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Lifespan(hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Work Temperature/Humidity | -10℃-50℃/10%RH-98%RH (Non Condensing) | -10℃-50℃/10%RH-98%RH (Non Condensing) | -10℃-50℃/10%RH-98%RH (Non Condensing) | -10℃-50℃/10%RH-98%RH (Non Condensing) | -10℃-50℃/10%RH-98%RH (Non Condensing) |
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | -20℃-60℃/10%RH-98%RH (Non Condensing) | -20℃-60℃/10%RH-98%RH (Non Condensing) | -20℃-60℃/10%RH-98%RH (Non Condensing) | -20℃-60℃/10%RH-98%RH (Non Condensing) |
Reduced power consumption: Up to 50% compared to traditional "common anode" LED displays, saving you money on electricity costs.
Lower heat generation:Less heat means longer component life and improved reliability.Higher brightness and color consistency: Enhanced visual performance.
Cost-effective: Reduced energy consumption and potential for longer lifespan contribute to overall cost savings.
Eco-friendly: Less energy usage makes them a greener choice for environmentally conscious businesses.
High-quality visuals: Bright and vibrant colors with consistent picture quality, even in outdoor settings.
Durable: Designed to withstand harsh weather conditions like rain, dust, and wind.
