Technical Specifications

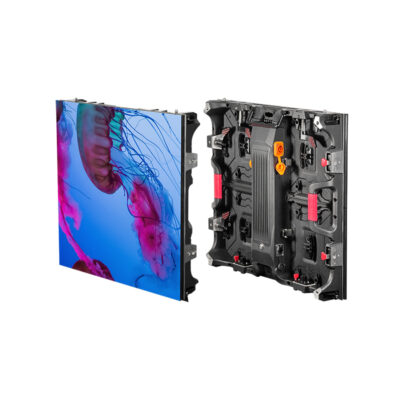

XT-S Outdoor Rental LED Display
| Model | P2.6 | P2.97 | P3.91 |
|---|---|---|---|
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 |
| Density (Pixels/㎡) | 147,456 | 112,896 | 65,536 |
| Module Size (mm) | 250x250x14mm | 250x250x14mm | 250x250x14mm |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 |
| Cabinet Size (mm) | 500x500x83mm | 500x500x83mm | 500x500x83mm |

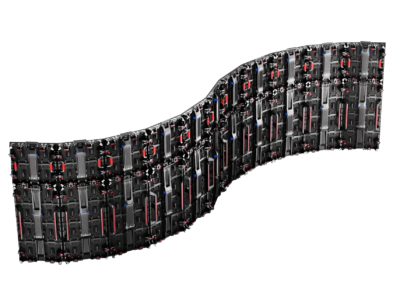

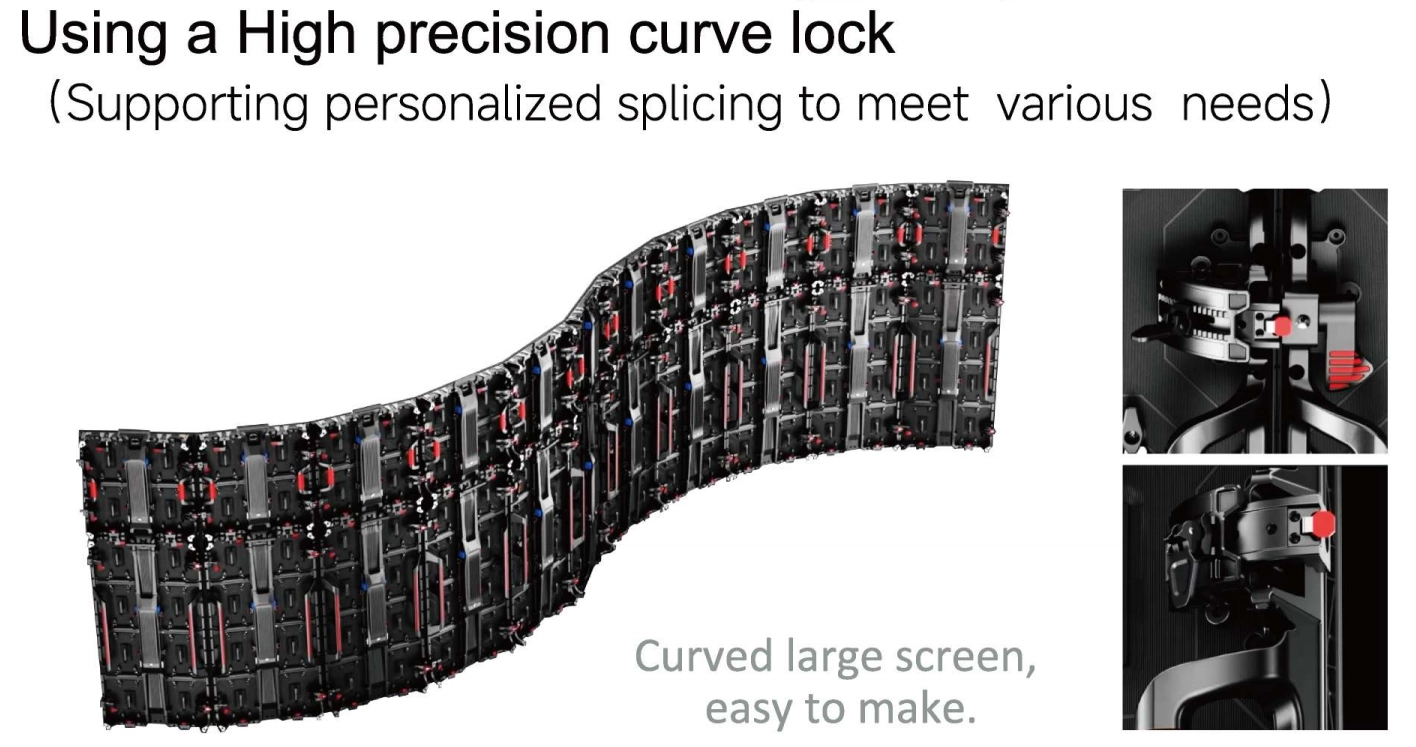

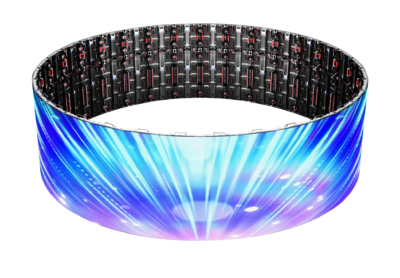

| Curving(Concave&Convex) | ±5° / ±10° / ±15° | ±5° / ±10° / ±15° | ±5° / ±10° / ±15° |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | ≧4000 | ≧4000 | ≧4000 |
| Viewing Angle (H/V °) | 110/110 | 110/110 | 110/110 |
| Gray Grade (Bits) | 14-16 | 14-16 | 14-16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 640 | 640 | 640 |
| Avg. Power Consumption (W/㎡) | 300 | 300 | 300 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≧3840 | ≧3840 | ≧3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | Front IP65 / Back IP65 | Front IP65 / Back IP65 | Front IP65 / Back IP65 |
Remark: XT-S supports customized cabinet sizes, brightness and control systems according to project requirements. Please contact us for a detailed technical datasheet and solution proposal.
|Key Features

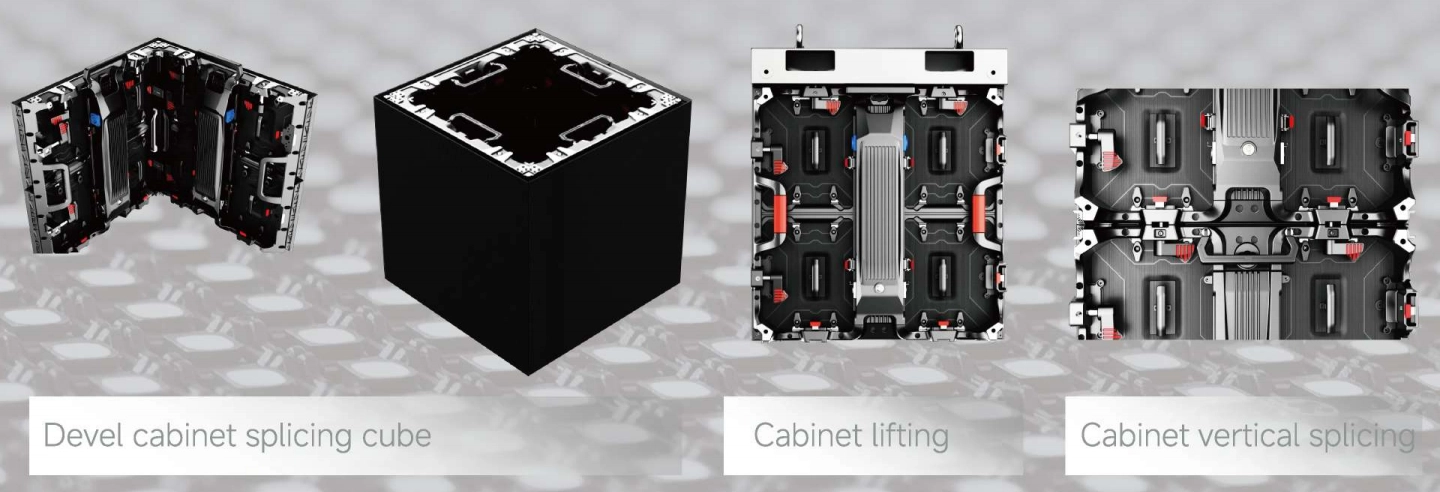

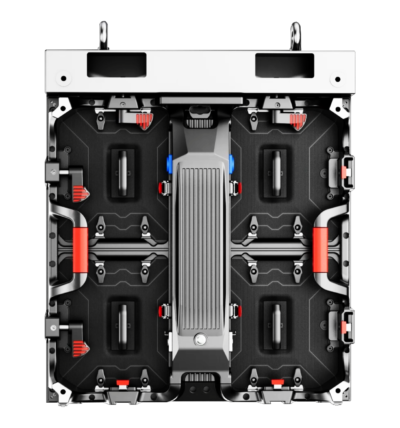

Key Features of XT-S Outdoor Rental LED DisplayHigh brightness design ensures clear visibility even in daylight conditions (4000-7000nits Optional)IP65 weatherproof structure, suitable for outdoor events and temporary installations.(In addition to rental applications, some clients install the screen for long-term outdoor use, thanks to its stable and weather-resistant design.)Lightweight die-casting aluminum cabinet for easy transportation and handlingFast installation & dismantling with quick-lock system, saving labor costHigh refresh rate ≥3840Hz, camera-friendly for live broadcasting （7680Hz-15360Hz Optional）Seamless splicing for smooth and uniform visual performance
Outdoor Performance
Designed for Outdoor Rental ApplicationsXT-S is engineered to meet the demands of high-frequency outdoor rental usage. The robust cabinet design, stable power and signal system, and efficient heat dissipation ensure reliable performance during long-time outdoor operation, even under challenging weather conditions.
Applications
Typical ApplicationsXT-S outdoor rental LED display is widely used in:Outdoor stage performancesConcerts & live showsMusic festivalsOutdoor exhibitions & trade showsTemporary event installations
Why Choose US
Why Choose XT-S Outdoor Rental LED DisplayFlagship outdoor rental model with proven project experienceDesigned for frequent installation and dismantlingStable quality for long-term rental operationFactory direct supply with professional technical support
