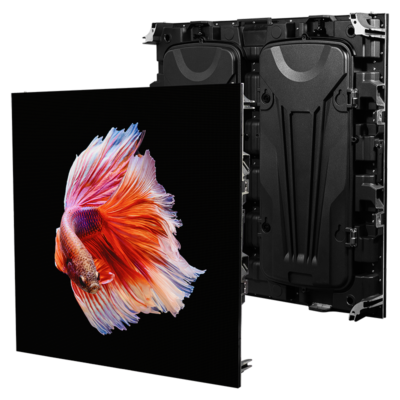

Outdoor Front Maintenance LED Display Specification
| Model | P4 | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Scan mode | 1/10 Scan | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
| Pixel density | 62,500dots/㎡ | 40,000dots/㎡ | 22,477dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Pixel Component | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Led lamp | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Brightness | >5000cd/㎡ | >5000cd/㎡ | >6000cd/m2； | >6000cd/m2； | >6000cd/m2； |

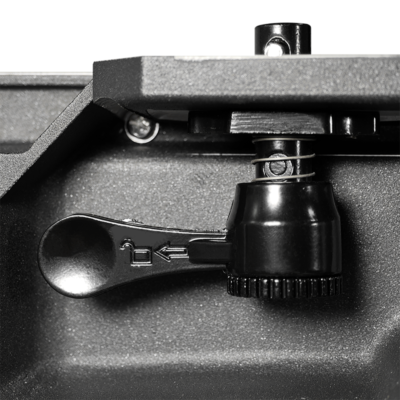

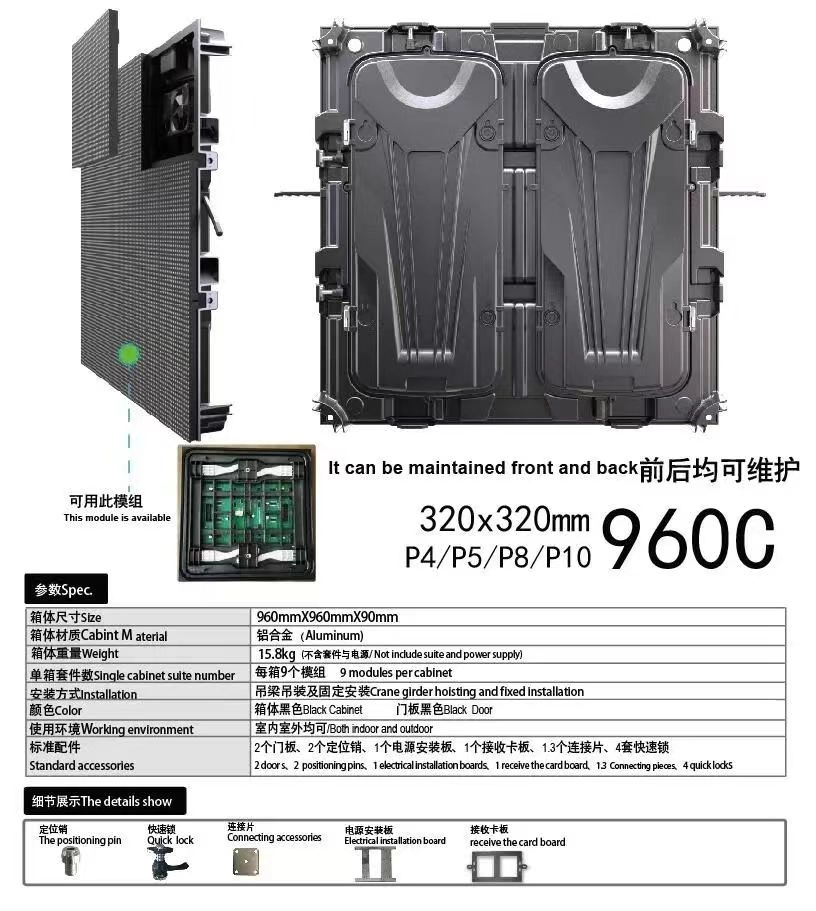

| Module size | 320*320mm(Front maintenance Lock System Model) | 320*320mm(Front maintenance Lock System Model) | 320*320mm(Front maintenance Lock System Model) | 320*320mm(Front maintenance Lock System Model) | 320*320mm(Front maintenance Lock System Model) |

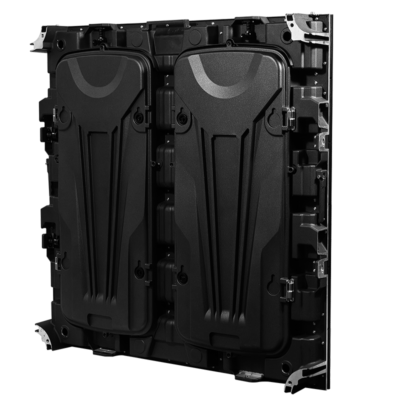

| Cabinet Size | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| Refresh Rate | >3840HZ | >3840HZ | >3840HZ | >3840HZ | >3840HZ |
| Power Consumption | AVG：500W/㎡，MAX：1000W/㎡ | AVG：500W/㎡，MAX：1000W/㎡ | AVG：500W/㎡，MAX：1000W/㎡ | AVG：500W/㎡，MAX：1000W/㎡ | AVG：500W/㎡，MAX：1000W/㎡ |
| Screen Weight | <28kg/㎡ | <28kg/㎡ | <28kg/㎡ | <28kg/㎡ | <28kg/㎡ |
| Protection grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Lifespan | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Output Voltage | 5V power supply | 5V power supply | 5V power supply | 5V power supply | 5V power supply |
| Input Voltage | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system | 100-240V(±10%)；AC 50-60HZ，three-phase five-wire system |
| Working Condition | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH | -10℃～+65℃，10%～95%RH |
| Viewing distance | 4-250m | 4-250m | 4-250m | 4-250m | 4-250m |
| Viewing angle | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° |
| Control System | NovaStar System, synchronize/asynchronous | NovaStar System, synchronize/asynchronous | NovaStar System, synchronize/asynchronous | NovaStar System, synchronize/asynchronous | NovaStar System, synchronize/asynchronous |

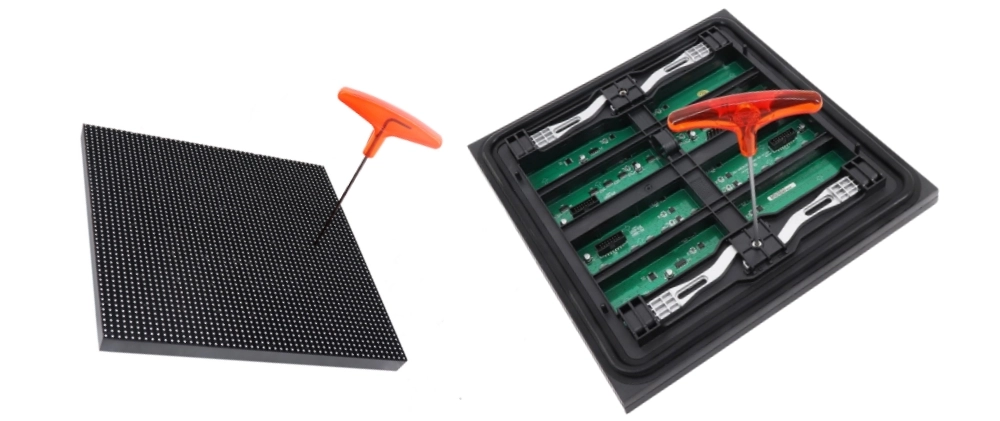

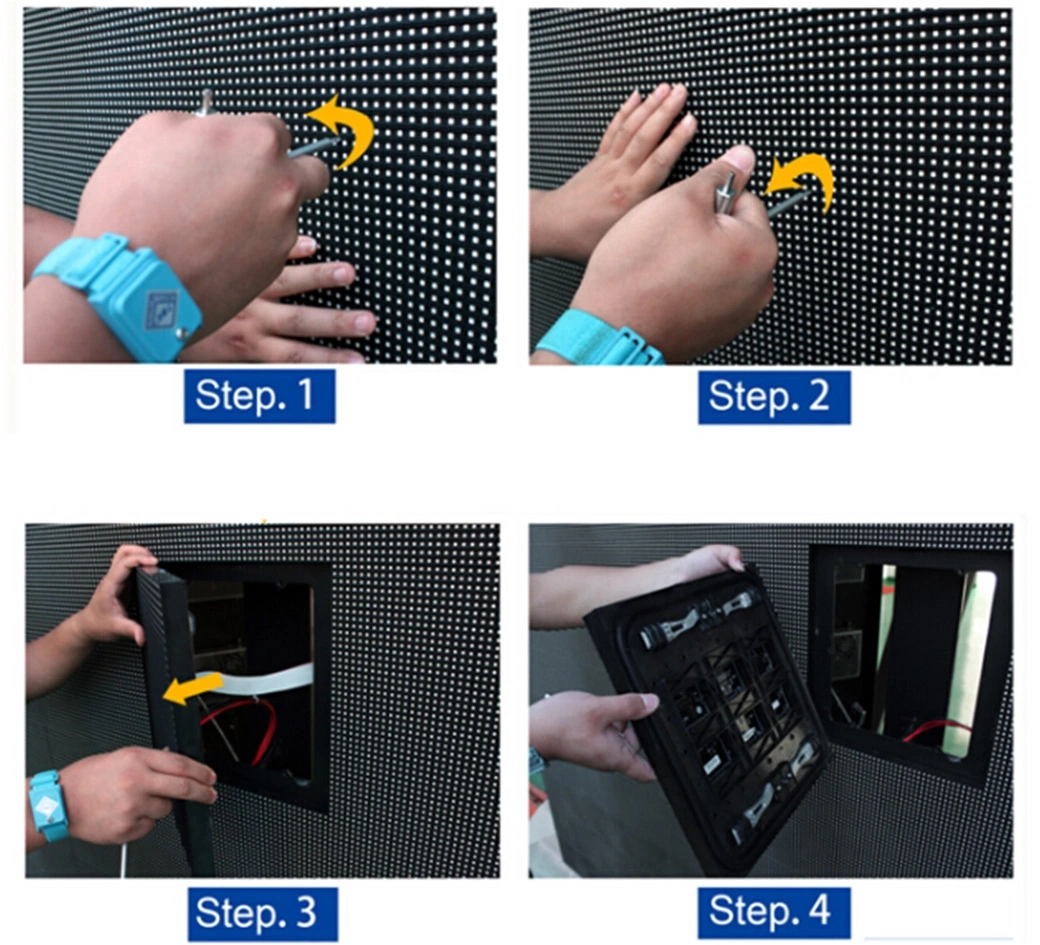

Easy Maintenance: The front-maintenance design allows for easy access to the display modules from the front, simplifying repairs and replacements without needing to disassemble the entire display from the back. This is crucial for outdoor installations where weatherproofing is essential.
Durability: Built to withstand harsh outdoor conditions like rain, dust, sunlight, and extreme temperatures.
High Brightness: Ensures clear visibility even in bright sunlight, making them suitable for various outdoor applications.
Wide Viewing Angles: Consistent image quality from different viewing positions, ensuring a wider audience can see the display clearly.
Versatility: Adaptable to various applications like billboards, building facades, outdoor advertising displays, stadiums, and event venues.
Application Scenarios
Advertising and Promotion
It is ideal for outdoor advertising campaigns. Businesses can use it to display eye - catching advertisements, promotions, and product information to attract potential customers passing by. Whether it's placed in a busy street, shopping mall entrance, or near a highway, it can effectively capture the attention of a large audience.P
ublic Information Display
In public places such as bus stops, train stations, and airports, this LED display screen can be used to show real - time information such as schedules, announcements, and weather updates. It helps keep the public informed and enhances the overall user experience.

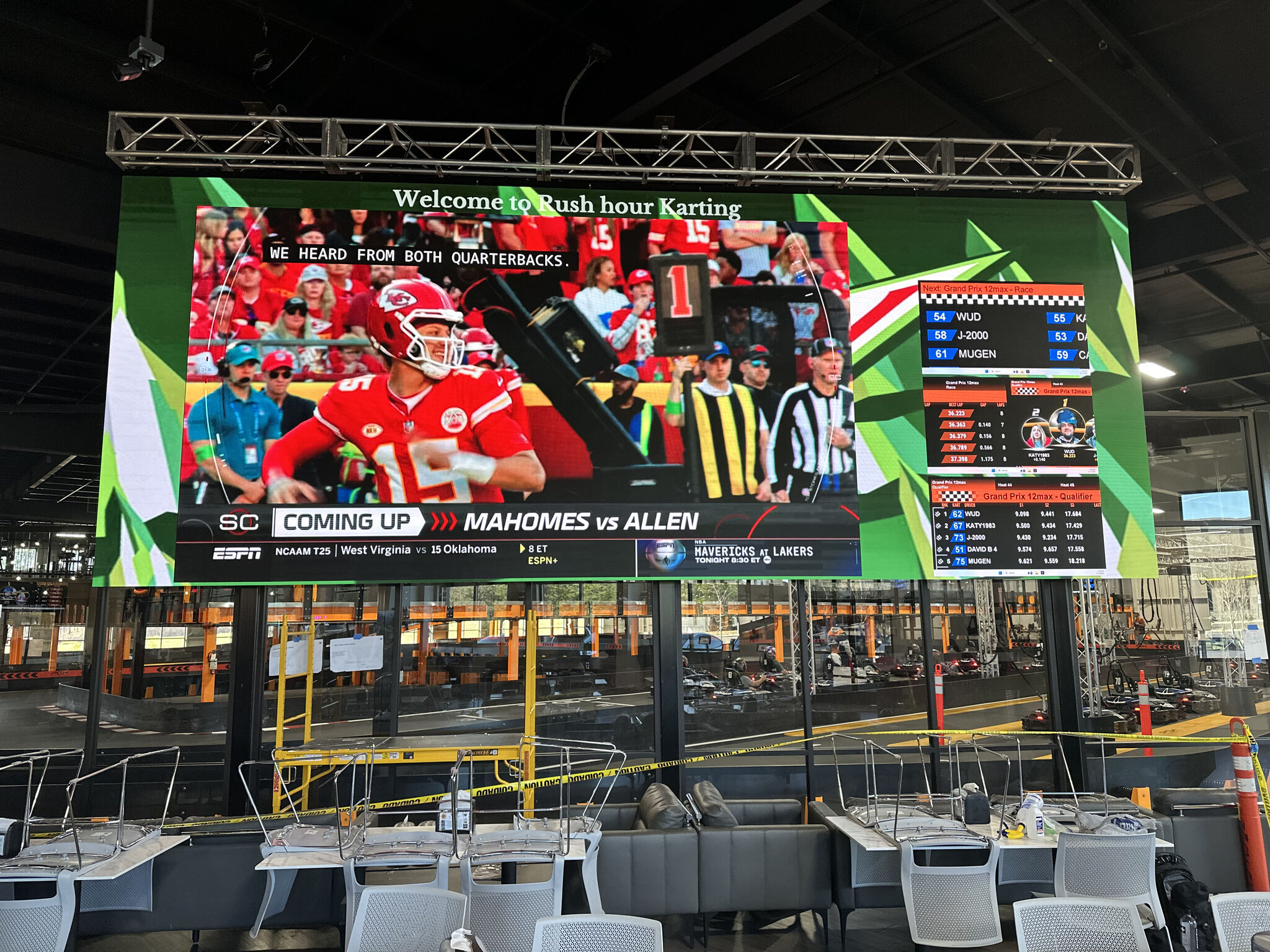

Sports and Entertainment Venues
For sports stadiums and entertainment centers, the P6 LED display screen can display live scores, player statistics, and exciting highlights during events. It can also be used to show promotional content and sponsor advertisements, adding value to the event experience.
Corporate and Event Displays
Companies can use it for outdoor corporate events, product launches, and exhibitions. It can display company logos, product demonstrations, and event schedules, creating an impressive and professional visual presentation.
